Specifications
Model NO. :
HE1500
Etching Type :
Double Spray
Precision :
Precision
Condition :
New
Accuracy :
+/- 0.02mm
Wokring Width :
650mm (Can Be Order)
Etching Area Length :
2meter
Acid Solution :
Ferric Chloride
Transport Package :
Standard Export Wooden Case
Specification :
CE
Trademark :
GOLDEN EAGLE
Origin :
China
HS Code :
84862090
Supply Ability :
20sets/Month
After-sales Service :
After 1year,Once Some Components Are Broke
Warranty :
After 1year,Once Some Components Are Broke
Type :
Electrical Etching Machine
Object :
Metal
Usage :
Corrosion & Hollowed-out
Certification :
CE
Description

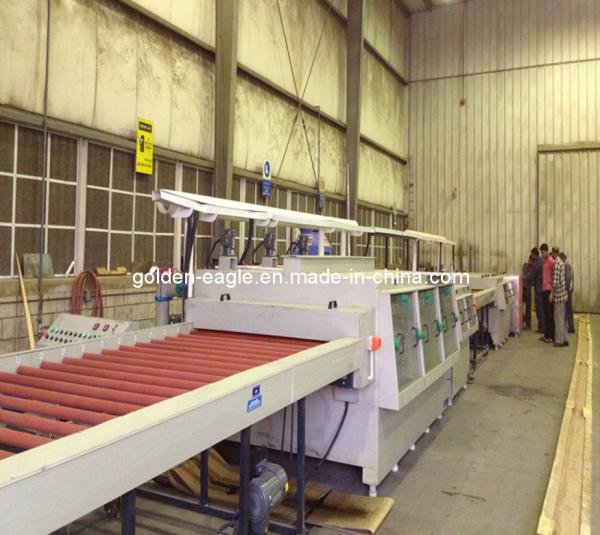

HE1500 huge metal decorative plate etching machine


Stainless Steel Etching Machine for elevator door

SK48 Automatic Etching/ Stripping Machine
Product Parameters

SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs
Product Description

Process: load (3meter) + etching (3meter)+ micro etching (1meter)+washing (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.
Detailed Photos

Huge Metal Decorative Plate Etching Machine HE1500 Double SprayHuge Metal Decorative Plate Etching Machine HE1500 Double SprayHuge Metal Decorative Plate Etching Machine HE1500 Double SprayHuge Metal Decorative Plate Etching Machine HE1500 Double SprayHuge Metal Decorative Plate Etching Machine HE1500 Double Spray

Packaging & Shipping

Huge Metal Decorative Plate Etching Machine HE1500 Double SprayHuge Metal Decorative Plate Etching Machine HE1500 Double Spray
