Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Specifications
Brand Name :
KUOMAN
Model Number :
KMRX200W
Place of Origin :
China
MOQ :
1set
Supply Ability :
1000pcs/month
Panel Dimensions :
115*98.5CM
Work time (h) :
24 Hours
Material :
poly silicon
Color :
Black
Max. power :
200W
Solar Cell :
Monocrystalline
Peak Voltage :
18V
Installation :
Easy peel-and-stick adhesive backing
Output Tolerance :
± 3%
Logo Print :
customization
Max System Voltage :
1000/600 V
Maximum Power :
100W
Accessories :
10A charge controller, 10ft cable with alligator clips
Current At Pmax :
8.34A(IMP)
Connector :
Compatible Connector
Maximum Power Voltage :
18V
Description

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Applicant: Home solar energy storage, RV travel, outdoor travel, outdoor adventure, mountain climbing, picnic and other entertainment venues

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
KUOMAN Solar Panel SPecification
Power
Open-circuit Voltage (Voc/V)
Short-circuit Current
(Isc/A)
Design Voltage
(Vmp/V)
Maximum Power Current (Imp/A)
Solar Panel Efficiency(%)
Product Architecture
SIZE
100W
21.9V
5.75A
19.2V
5.5A
24.20%
7-layer process
918*580*2.5mm
120W
22.6V
6.93A
19.2V
6.63A
1084*580*2.5mm
150W
21.21V
9.24A
18V
8.84A
1020*764*2.5mm
180W
21.21V
11.1A
18V
10.61A
1203*764*2.5mm
200W
23.1V
11.09A
19.8V
10.6A
1316*764*2.5mm
250W
22.5V
13.89A
19.2V
13.28A
1279*948*2.5mm
300W
44.9V
8.64A
38.5V
8.26A
9-layer process
1618*948*2.5mm
350W
44.54V
9.87A
37.9V
9.44A
1799*948*2.5mm
400W
44.54V
11.62A
37.8V
11.11A
1771*1132*2.5mm
450W
42.42V
13.84A
36.12V
13.23A
1977*1132*2.5mm
500W
42.42V
15.26A
36.12V
14.59A
2164*1132*2.5mm

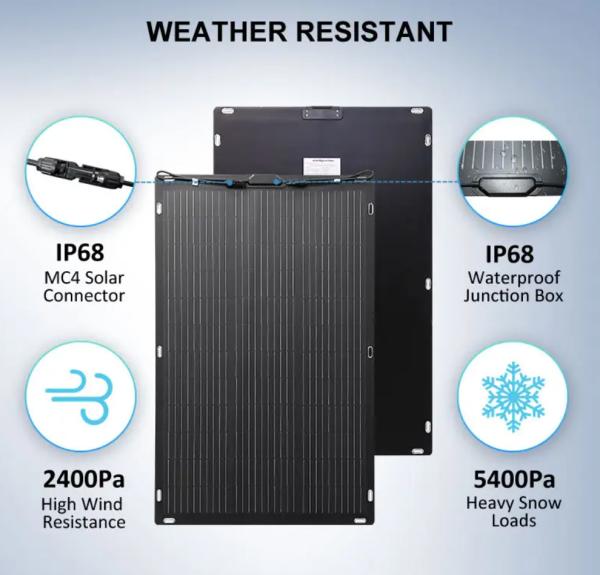

Details of 200W flexible solar panel shown:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in to
avoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;
5.Universal and robust MC4 connector .
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Specification
item
value
Brand Name
KUOMAN SOLAR
Model Number
KM FL210W
Place of Origin
Guangdong,China
Material
FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber
Color
White/Black
Cell size
182mmx182mm
Panel Dimensions
115*98.5CM
Panel Efficiency
>=23%
OEM/ODM
Availble
Warranty
1year

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

FAQ

1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.

2.What’s kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.
2)Utility model of China and Appearance Patent of Europe.

3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
