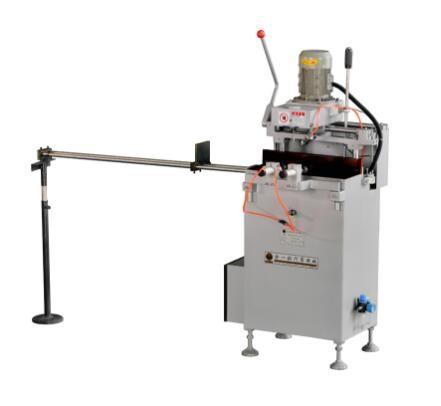

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Specifications
Brand Name :
KM
Certification :
Factory certificate
Place of Origin :
China
MOQ :
1 pcs
Price :
2280
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden case
working dimension (lxw) :
215x170mm
max.distance of milling head left :
260mmm
max. distance of milling head rear :
130mm
max. distance of milling head up to down :
100mm
max. milling cutter diameter :
8mm
min milling cutter diameter :
5mm
Description

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum

Specifications

1. copy milling window lock hole vertical slotting
2. fabrication of aluminum window
3. copy template designed

Product Description

1- was equipped with two sets of molds, use 5mm

and 8mm milling cutters, capable of replicating complicated hole to the work piece.

2-Adopts pneumatic clamping operation, high automation.

3-Rotate raising positioning black allow three different kinds of milling depth.

4-All linear movement bearings and milling cutters are from Germany, durable and smooth.

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum

KM - 393 uniaxial copying milling machine

1. The Spanish flat belt transmission

2. Special control handle

3. Taiwan also, low-voltage electrical appliances

4. The KBS linear bearing

5. Germany cutter

6. Joint JELPC pneumatic components

7. CE standard 24 v control circuit

The main technical parameters

1. The table size (length x width) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 512 x 170 mm

2. The vertical milling head left and right moving maximum distance -- -- -- -- -- -- --- -- -- - 260 mm

3. The vertical milling entered, the maximum distance after -- -- -- -- -- -- -- -- -- -- -- -- ----- 130 mm

4. The vertical milling head, the largest mobile distance -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 100 mm

5. End mill diameter biggest -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 8 mm

Minimum -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 3 mm

6. End mill speed -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 12000 r/min

7. The motor power -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- N = 1.1 KW

8. Motor speed -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- n = 2840 r/min

9. Work pressure material cylinder pressure -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 0.6-0.65 Mpa

10. The dimensions (length x width x height) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 640 x660x1400mm

11. Weight -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 350 kg

Main features:

1. Use CE standard 24 v control circuit, safe in operation.

2. The special operation handle, solve the problem of most products handle often damage.

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum

MAIN TECHNIQUE PARAMETER

1.

Worktable size (WxH)

512x170mm

2.

Max. distance of milling head from left to right

260mm

3.

Max. distance of milling head from front to rear

130mm

4.

Max. space height of milling head

100mm

5.

Milling cutter diameter

3mm / 5mm / 8mm

6.

Milling cutter rotation speed

12000 rpm

7.

Motor power

1.1 Kw

8.

Motor rotation speed

2840 rpm

9.

Working air pressure

0.6-0.8Mpa

10.

Overall dimension (L×W×H)

640×660×1400mm

11.

Weight 300kg

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum

Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
