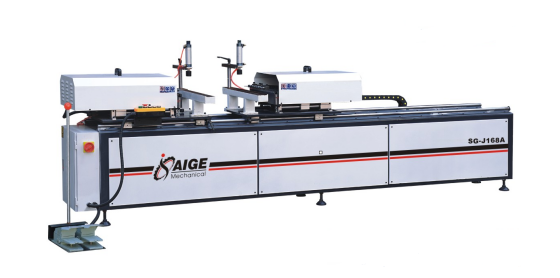

SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
SG-J168A double end hinged drill
Specifications
Brand Name :
KM
Model Number :
SG-J168A
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 Pieces per Month
Delivery Time :
15 days
Packaging Details :
Regular export packing
Description

SG-J168A double end hinged drill

SG-J168A double end hinged drill

Product introduction: Product introduction

The equipment is mainly used for aluminum alloy doors and Windows and plastic steel doors and Windows, upper and lower end of the window sander hinge hole processing, can be adjusted before and after up and down, the adjustment is simple and convenient, a clamping can be processed 8 holes at the same time, drilling precision and high efficiency, is the ideal equipment to improve production efficiency

技术参数Technique data

  1. 机器电源power.......................................三相380VAC/50HZ
  2. 电机功率Blade motor......................................2X2．2Kw
  3. 电机转速 rotary speed......................................2840r/min
  4. 加工孔直径 hole diameter.....................................φ3-φ11
  5. 最大孔距MAX hole diameter.....................................220mm
  6. 运行模式 operate mode..........................................半自动 semi auto

7,进给速度 feeding speed....................................0-10m/min

8,孔数 nr Of hole.........................................8孔/8 holes

9,最小孔距 MIN hole diameter......................................20mm

10,精度precision.............................................±0.05

11,外形尺寸(LXWXH)machine dimension...........................3500mmX620mmx1200mm

12,机床重量 machine weight...................................................600kg
