Oil Mist Eliminators Clean Dry Vapor HP HR Titanium Knitted Wire Mesh Demister
Oil Mist Eliminators Clean Dry Vapor HP HR Titanium Knitted Wire Mesh Demister
Specifications
Brand Name :
Yuanqiao
Model Number :
YQ-105
Certification :
ISO9001
Place of Origin :
Anping, China
MOQ :
1pc
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Wooden boxes
Product Name :
Stainless Steel Mist Eliminator
Material :
stainless steel
Length :
18 inch ,20 inch,24 inch,32 inch
Width :
18 inch ,20 inch,24 inch,32 inch
Hole size :
Irregular
Wire diameter :
0.23mm 0.25mm 0.27mm
Hole Shape :
irregular
Demsiter filter pad size :
18''*18'' ;24''*24'' ;12''*24"
Application :
Mist and grease filter
Type :
knitted
Description

Oil Mist Eliminators Clean Dry Vapor HP HR Titanium Knitted Wire Mesh Type

Oil Mist Eliminators Clean Dry Vapor HP HR Titanium Knitted Wire Mesh Type

Description
Product Name: Mist Eliminator Sample: Avaliable
Wire Diameter: 0.23mm , 0.25mm , 0.28mm Height: 150mm 200mm
Pad Thickness: 100mm 150mm Pad Density: 128 Kg/M3 ,144 Kg/M3, 191kg/M3
Shape: Round, Ring, Rectangular Feature: Corrosion Resistance
High Light:

oil mist eliminator

,

wire mesh pad

Oil Mist Eliminators Clean Dry Vapor HP HR Titanium Knitted Wire Mesh Type

What is Yuanqiao wire mesh Mist Eliminator ?

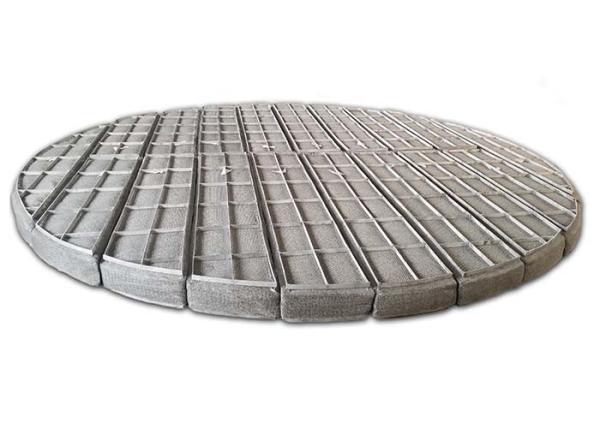

Mist Eliminator is fabricated in pad form from symmetrical interlocking loops of knitted metal wire or plastic mono-filaments. The pad with a high free volume and large impingement area,can be installed in any existing or new process vessel to provide separation efficiencies upto 99% for particles down to five microns at pressure drops in the vicinity of 25 mm WC.The Valor wire mesh Mist Eliminator is a static, in-line device and in majority of the cases it can be installed in the evaporator, scrubber, pressure vessel etc., without a special housing. There is practically no maintenance required except for cleaning when used in fouling services.

SPECIFICATIONS FOR MIST ELIMINATOR

WIRE MESH

 Type

Specific Surface Area

m2/m3

 Void fraction
%
SP 529.6 97.88
HP 403.5 98.39
DP 625.5 97.65
HR 291.6 98.32

Oil Mist Eliminators Clean Dry Vapor HP HR Titanium Knitted Wire Mesh Demister
