700mm Cooling Tower Mist Eliminator 706 Style Demister YQ-112 Custom Fabrication
700mm Cooling Tower Mist Eliminator 706 Style Demister YQ-112 Custom Fabrication
Specifications
Brand Name :
Yuanqiao
Model Number :
YQ-96
Certification :
ISO9001
Place of Origin :
Anping, China
MOQ :
1pc
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Wooden boxes
Product Name :
Stainless Steel Mist Eliminator
Material :
stainless steel
Length :
18 inch ,20 inch,24 inch,32 inch
Width :
18 inch ,20 inch,24 inch,32 inch
Hole size :
Irregular
Wire diameter :
0.23mm 0.25mm 0.27mm
Hole Shape :
irregular
Demsiter filter pad size :
18''*18'' ;24''*24'' ;12''*24"
Application :
Mist and grease filter
Type :
knitted
Description

700 mm Stainless Steel Mesh Pad 706 Style HL -112 Custom Fabrication

700 mm Stainless Steel Mesh Pad 706 Style YQ-112 Custom Fabrication

Description
Other Name: Mesh Pad Mist Eliminator Feature: High Capacity With Moderate Efficiency
Material: SS304 Size: 700mm Or As Per Order
Use: Chemical Tower Advantage: Fast Delivery
High Light:

wire mesh demister pad

,

wire mesh pad

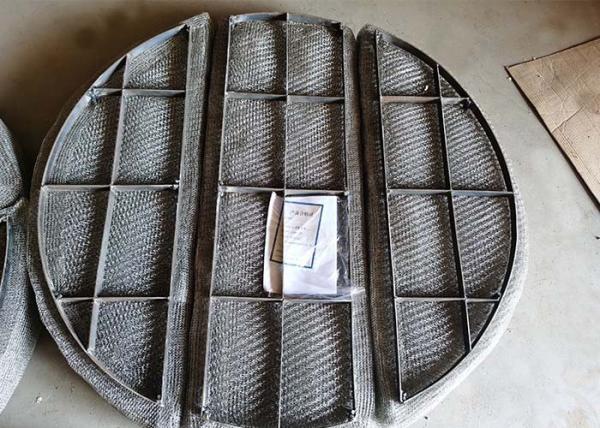

700 MM Stainless Steel Mesh Pad Mist Eliminator 706 Style Custom Fabrication

How shall we understand the wire mesh demister pad code 706? It usually happens that we get customer inquiries with some codes like this. Sometimes even the customers themselves can not indicate the exact type of demister pads they want. With years' of valuable experiences and deep understanding of the wire mesh demister pad, Hualai factory is willing to help with what you need! Come and check if I understand this demister type code rightly or not.

Demister pad vapor liquid separator Specifications in this case

Item Value Unit
Material SS304 /
Shape & Size Φ700 mm
Mesh Thickness 100 mm
Demsiter Height 150 mm
Wire Diameter 0.15 mm
Mesh Density 112 kg/m3
Void Fraction 0.986 /
Specific Area 376 m2/m3
Grids 25*3 flat bar mm

Metal Wire Mesh Pad Mist Eliminator Type and Applications

Wire Dia.

Mm

Mesh Density

Kg/m3

Surface Area

M2/m3

 Normal Micron Rating Application
0.15 195 650 3 Very high efficiency in clean service
0.15 145 480 4 Fine droplet removal in clean service
0.15 112 375 5 General purpose in clean service
0.28 195 355 5 Optimum efficiency & pressure drop
0.28 170 310 6 General purpose not totally clean
0.28 145 265 8 Heavy Duty e.g. Oil & Gas Separators
0.28 110 200 10 Light fouling
0.28 80 145 12 Moderate fouling

Yuanqiao's advantages as a wire mesh mist eliminator vendor:

Advanced mechanical design and careful selection of materials provide maximum performance lifetime.

As a consequence of maximizing performance lifetime, life-cycle cost (total cost) is minimized.

Superior technical support minimizes risk in process design and plant operations.

When-needed delivery prevents unnecessary plant downtime.

Industry leadership in quality assures customer satisfaction
