SS316 3 Inch Saddle Ring Packing 70mm Metal Random Column Packing
SS316 3 Inch Saddle Ring Packing 70mm Metal Random Column Packing
SS316 3 Inch Saddle Ring Packing 70mm Metal Random Column Packing
SS316 3 Inch Saddle Ring Packing 70mm Metal Random Column Packing
Specifications
Brand Name :
Yuanqiao
Model Number :
Metal Intalox Saddles
Certification :
ISO9001
Place of Origin :
Anping, China
MOQ :
1pc
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Wooden boxes
Product Name :
Metal Random Packing
Material :
Stainless Steel 304, 316L, Etc.
Shape :
Raschig Ring
Size :
16# 25# 40# 50# 70#
Application :
Absorption , scrubbing , stripping
Type :
Catalyst beds
Keyword :
Metal rashing ring
Description

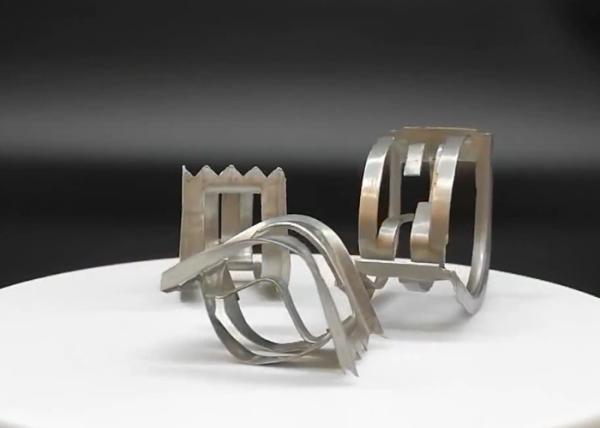

SS316 3 Inch 70mm Metal Random Packing Saddle Rings

1. Metal Saddle Ring Introduction

Metal saddle ring is a new type of high efficiency random packing developed in the 1990s. It is used mainly in new packing tower. The towers can be 35% lower in height, or 30% smaller in diameter than previous towers. In other words, the metal saddle ring increased 10-30% in efficiency, and reduced 20-60% in pressure drop. In China, the experimental study of dry distillation, rather than wet distillation, shows that the investment can be reduced by 20%. Generally speaking, the adoption of metal saddle ring can increase the production, low energy consumption and cost, and improve the separation efficiency.

2. Popular types of metal saddle rings in the world market:

Dia.

Size

mm

Thickness

mm

Bulk Qty

n/m3

Specific area

M2/m3

Void

%

F factor

15#

16.5*10.6

0.3

325000

265

96.5

291

25#

25.9*12.6

0.3-0.4

128000

193

97.4

207-213

40#

35.4*18.8

0.3-0.4

52000

143

97.9

156-159

50#

48.5*28.6

0.4-0.6

15550

94

98.1

98-101

60#

67*37

0.4-0.6

8400

76

98.8

79-80

70#

76.5*42.5

0.5-0.6

4700

59

99.1

62

3. Characteristics and Benefits:

High-performance
Higher mechanical strength
Large effective interfacial area
Geometry ensures low liquid hold-up
Significant improvement in capacity compared to Pall Rings

4. Metal Saddle Ring Application:

1. Degassing

2. CO2 absorption

3. Air pollution control

4. Ammonia absorption

5. High pressure and vacuum towers
