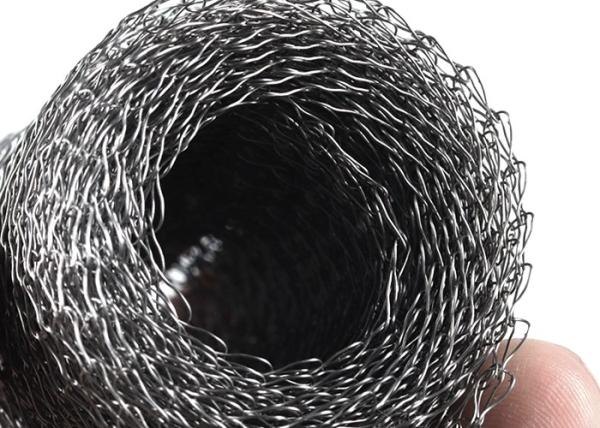

Metal Knitted Wire Mesh Co Knit Stainless Steel 316L And PTFE Fiber
Metal Knitted Wire Mesh Co Knit Stainless Steel 316L And PTFE Fiber
Specifications
Brand Name :
Yuanqiao
Model Number :
YQ-114
Certification :
ISO9001
Place of Origin :
Anping, China
MOQ :
1pc
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Wooden boxes
Product Name :
Stainless Steel Knitted Wire Mesh
Material :
stainless steel ,copper ,brass
Length :
30-200mm
Width :
40-600mm
Hole size :
4mm*3mm,5mm*6mm, 2mm*4mm,4mm*5mm etc
wire numbers :
1, 2, 3, 4 wires
Hole Shape :
irregular
Processing :
Welding, Cutting
Application :
Filter
Type :
woven
Description

High Surface Area Co Knit Of Stainless Steel 316L And PTFE Fiber

High Surface Area Co Knit Of Stainless Steel 316L And PTFE Fiber

Description
Material: 316L + PTFE Fiber Width: Specified By Client
Treatment: Corrugation Or None Weaving Style: Co-knit Of Metal And Fiber
Feature: Corrosion Resistant Specific Area: 4000-5000 M2/m3
High Light:

stainless steel knitted wire mesh

,

demister pad

High Surface Area Co Knit Of Stainless Steel 316L And PTFE Fiber

Materials of construction are a key consideration for maximizing the service life of the kitted wire mesh used in making mist eliminator. We provide custom manufactured knitted wire mesh specified by the client. Typical stainless steel, polypropylene mesh are maintained in inventory. Other alloy steels and polymeric materials are available by special order. Extremely high surface area units by co-knitting of stainless steel and multifilament glass fiber or PTFE fiber are available by special order. We are able to provide technical input for material selection to the customers.

Material of knitted wire mesh and its application:

Materials Main Application Area
SS304 Water solutions, Nitric acid reduced crude petroleum fraction etc.
SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals
Synthetic fiber For corrosive service at moderate temperature
PP(Polypropylene) For corrosive service at temperature up to 70℃
PTFE For corrosive service at temperature of (-190℃, 250℃)
Monel Caustic soda, dilute acid
Nickel Caustic Soda, food products
Copper Freon, alcohol
Aluminium Nitric Acid

Yuanqiao knitted wire mesh may be made from most metals and plastics i.e. SS304, 304L, 316, 316L, 321, 310S, 201, Duplex 2205, 316Ti, 904L, Monel, Nickel, Alloy 20, Copper, P.T.F.E., H.D.P.E., P.P., co-knit of 316L + PTFE, alloy 20 + PTFE, 304+PTFE, 904L + PTFE, 304+glass fiber, 316L + glass fiber, 904L + glass fiber, 316L+PP etc. and other metals, alloys or plastic which can be drawn or extruded.

Knitted Wire Mesh applications include:

Cable wrap

Exhaust seals

Lint traps-alum

Flame arrestors

Ground wire mesh

Oil-bath separators

Copper gauze mesh

Diesel injector filters

Mist elimination pads

Heat exchange media

Insulation blanket mesh

Metal & plastic sponges

Catalytic converter mesh

Oil & air breather elements

Mufflers and silencers, pneumatic tools

Separators for liquid vapor used in chemical and petro-chemical plants
