SS304 Filter Demister 100mm 150mm Thickness Wire Mesh Demister
SS304 Filter Demister 100mm 150mm Thickness Wire Mesh Demister
Specifications
Brand Name :
Yuanqiao
Model Number :
YQ-336
Certification :
ISO9001
Place of Origin :
Anping, China
MOQ :
1pc
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Wooden boxes
Product Name :
Mesh Pad Demister
Material :
SS316
Thickness :
100mm, 150mm, Or As Per Order
Shape :
Donut, Circle
Sections :
6/8, Or As Per Order
Application :
Scrubber
Grids :
25*3mm flat bar
Shape & Size :
Φ1700-Φ630 Φ2200-Φ820
Factory :
Yuanqiao
application :
filter
Description

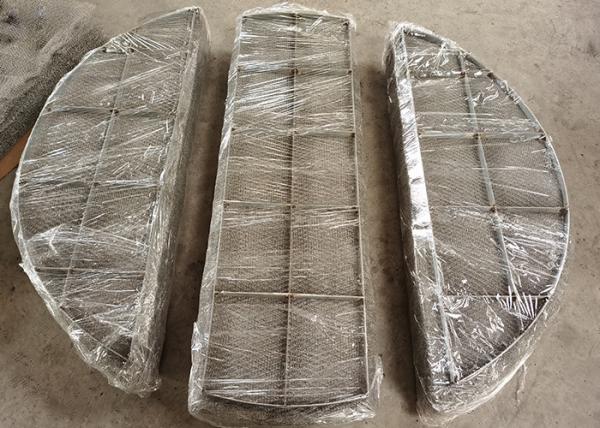

SS304 Filter 100mm 150mm Thickness Wire Mesh Pad Demister

SS304 Filter 100mm 150mm Thickness Wire Mesh Pad Demister

Tower internal Gas-liquid filter defogging pad / Stainless steel knitting demister gas-liquid filter wire mesh​

The wire mesh demister

Demister Pad also know as mist eliminator or spray. This is a kind of high efficiency separation devices,used throughout all kinds of process industries,to remove liquid droplets from gas or vapor streams.
Materials for making of demister filters cover stainless steel wire,copper wire,monel wire,fiber glass and other fine materials.Demisters are classified into Standard Type,High Efficiency Type,High Permeability Type and Shock Absorption Type according to the features of filters.

Mesh Density 112 kg/m3
Void Fraction 0.986 /
Specific Area 244 m2/m3
Grids 25*3 flat bar mm

Metal Wire Mesh Pad Demister Type and Applications

Wire Dia.

Mm

Mesh Density

Kg/m3

Surface Area

M2/m3

 Normal Micron Rating Application
0.15 195 650 3 Very high efficiency in clean service
0.15 145 480 4 Fine droplet removal in clean service
0.15 112 375 5 General purpose in clean service
0.28 195 355 5 Optimum efficiency & pressure drop
0.28 170 310 6 General purpose not totally clean
0.28 145 265 8 Heavy Duty e.g. Oil & Gas Separators
0.28 110 200 10 Light fouling
0.28 80 145 12 Moderate fouling

Product Advantage

◆ High efficiency. The knitted mesh has interlocked structure to supply high filtering and separating efficiency.
◆ Corrosion and rust resistance.

◆ Acid and alkali resistance.
◆ Convenient to install and transport. Large diameters demister pads will be made into several separated parts for easy transportation and installation.
◆ Customized shapes and sizes. The shapes, supporting grid types and sizes can be customized to suit customers' requirements.
Multiple materials for choice. Metallic or non-metallic materials to supply different filtering requirements and usage conditions.
Demister Pad is widely used in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping, environment protection and for fuel gas scrubber.

The material we have in stock.

PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS301S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...

Also we can handle other materials, but please specify when ordering.

Yuanqiao has 15 years export experience,in wire mesh demister industry already 20 years,if you have any question ,i will give you professional suggestion soon ,looking forward your enquiry ,
