ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
Specifications
Brand Name :
Kaineng
Model Number :
KNFT-1
Certification :
ISO ASME
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
1000 Sets / Year
Delivery Time :
60 Working Days
Packaging Details :
Standard Export Package
Function :
Steam Boiler
Fuel :
Exhaust Gas
Structure :
Water Tube
Meadium :
Water And Steam
Water Circulation :
Natural Circulation
Boiler Layout Style :
Horizontal
Usage :
Industrial & Powr Plant
Steam Pressure :
0.5~2.45MPa
Package :
Standard Export Package
Description
Horizontal Water Tube Generator Set Waste Heat Boiler for Oil/Natura Gas Engines

Description of Water Tube Generator Set Waste Heat Boiler :
Water tube waste heat steam boiler: is the high efficient energy saving equipment for flue gas waste heat recovery of Diesel/HFo/Natural Gas Engines.

It is a special high-efficiency energy-saving product for specially designed for the waste heat recovery of the flue gas of the generator set. H fin tubes are used to increase the boiler heating surface on the smoke side of the water tube.

At present, thousands of waste heat boilers have been applied to various types of gas-fired generating units, which have been highly praised by users.

Design Structure Of Water Tube Generator Set Waste Heat Boiler:
Waste Heat Steam Boiler:
1. Superheater
2. Evaporator
3. Economizer (heating the feedwater)
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
Product advantage of Water Tube Generator Set Waste Heat Boiler:
1 High heat transfer efficiency.
The welding fusion rate of fins with steel pipes can reach up to 95%. low contact resistance, good heat transfer performance.
2 Low flow resistance
3 Less dust
4 Less wear and tear
5 Small size and light weight
Product parameter Of Water Tube Generator Set Waste Heat Boiler (Boiler customization available):
Operating pressure: 1.0MPa
Design pressure: 1.1MPa
Operating temperature(inlet/outlet) ºC 60/184ºC
Design temperature 200ºC
Hydraulic test pressure 1.4MPa
Maximum dimension: 2885×Φ1525 (mm)

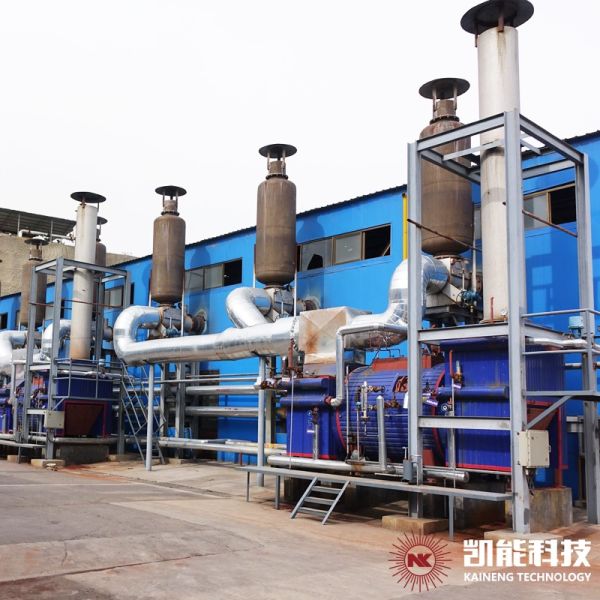

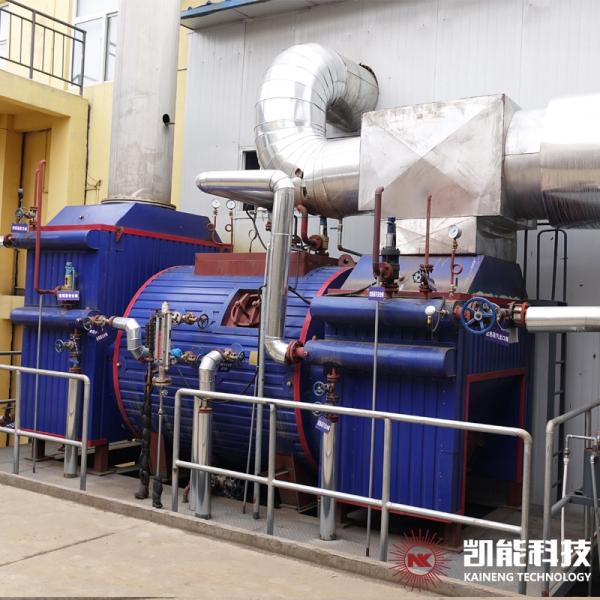

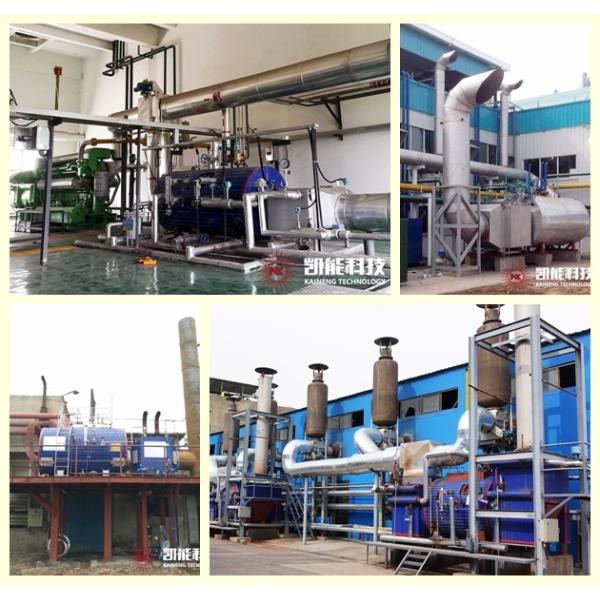

More Other Waste Heat Boiler Projects:ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
Kaineng Service Provided:
Pre-sale service:
Kaineng helps customer to choose the proper waste heat boiler model according to different requirements of various industry. Before delivery we will provide boiler drawings, auxiliary equipment drawings, foundation drawing, layout drawing, etc.

In-sale service:
Kaineng keeps 24 hours online and keeps close contacts during the production process to ensure on time delivery with perfect finished product.

After-sale service:
1. provide full range of original quality spare parts.
2. Kaineng offer project guidance service, we will dispatch engineers to your local project site to guide the installation and commissioning.
3. Our engineers will held a training for boiler workers to ensure the safe operation.
4. Free maintenance and repair for one year and lifelong service.

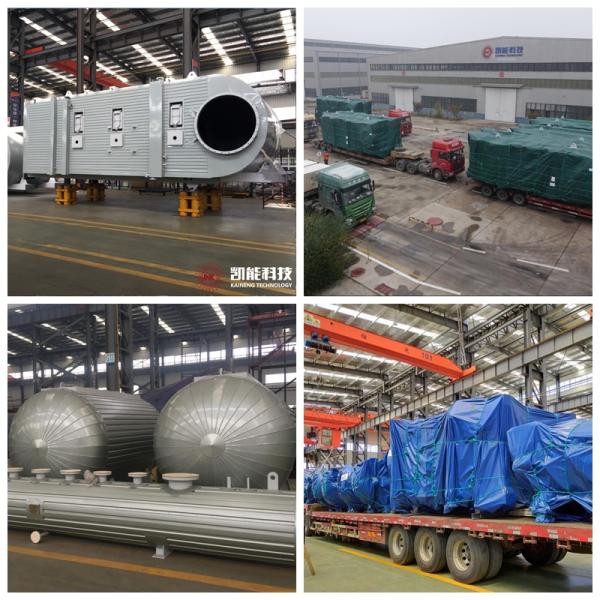

Waste Heat Boiler Package &Transporation:
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler​
ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
Kaineng Factory Area ASME 2.45MPa Horizontal Water Tube Waste Heat Boiler
