Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
Specifications
Brand Name :
KOKA
Model Number :
CL-150-50
Certification :
ISO9001-2015
Place of Origin :
Shanghai
MOQ :
500PCS
Price :
sent email
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
99999 pcs/month
Delivery Time :
contact us
Packaging Details :
Pallet Packing,customized requirement
Material :
Steel/Q235B
Service :
OEM ODM
Maximum Load-bearing Capacity :
50-200kg
Length :
2.44m/3m/6m
Type :
Ladder Tray
Standard : :
NEMA 20B 20C
Finished :
EG/HDG/Powder Coating/SS304/SS316
Description

Hot Dip Galvanized HDG Ladder Type Cable Tray

Products:Cable Ladder

Cable ladder is widely used in the wiring system to let the wiring smooth and tidy. It is used to support large numbers of large cables between two points. It is suitable for large diameters wires especially for high and low voltage power cables. Compared with cable tray, which is isolated, the cable ladder has good air circulation and heat dissipation. It is stabler and high load capacity than the wire mesh cable tray.

Features:Koka Cable Ladder are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable ladder.

Applications:Cable Support

Generally, cable ladders are preferred for supporting high volume or heavy cabling, especially if there are long spans between supports.

Specification:

Part No. Width(mm) Heigth(mm) Thickness(mm) Length(mm) Finish
Cable Ladder
CL-150-50 150 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-50 200 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-50 250 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-50 300 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-50 400 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-50 450 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-50 500 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-50 600 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-50 750 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-50 900 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-150-75 150 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-75 200 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-75 250 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-75 300 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-75 400 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-75 450 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-75 500 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-75 600 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-75 750 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-75 900 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
Heavy Duty Cable Ladder
CL-150-100 150 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-100 200 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-100 250 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-100 300 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-100 400 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-100 450 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-100 500 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-100 600 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-100 750 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-100 900 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-150-125 150 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-125 200 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-125 250 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-125 300 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-125 400 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-125 450 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-125 500 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-125 600 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-125 750 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-125 900 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-150-150 150 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-150 200 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-150 250 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-150 300 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-150 400 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-150 450 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-150 500 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-150 600 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-150 750 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-150 900 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316

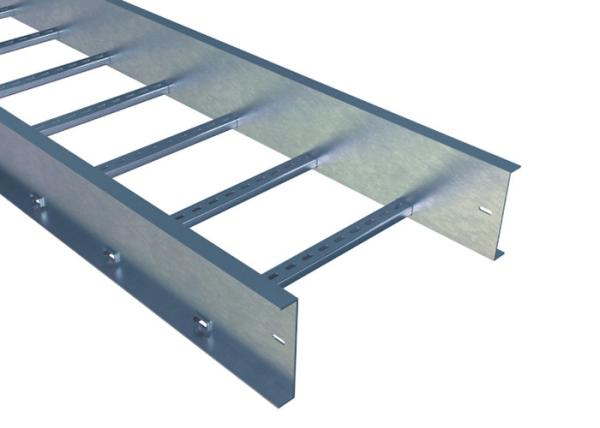

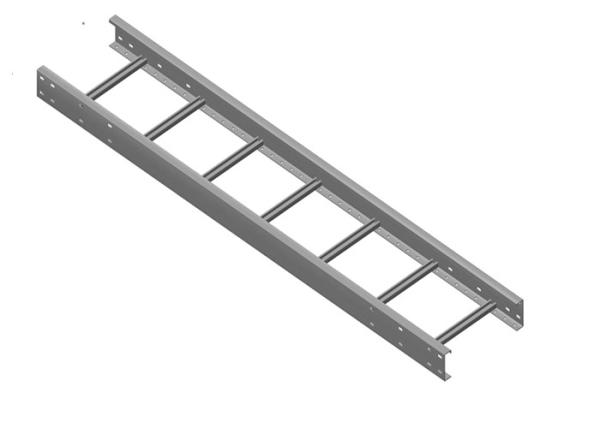

Product Show:

Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m

Package:

Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m Hot Dip Galvanized 200kg HDG Cable Ladder Tray EG 2.44m
