TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235
TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235
TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235
TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235
TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235
TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235
Specifications
Brand Name :
KOKA
Model Number :
CC-1/4+6"pipe
Certification :
ISO9001-2015
Place of Origin :
Shanghai
MOQ :
1000PCS
Price :
Sent email to us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
99999 pcs/month
Delivery Time :
15-25days
Packaging Details :
Plastic bags+Carton Box+Pallet
Material :
Q235,Stainless Steel 304/316
Surface Treatment :
Zinc Plated /gold zinc/HDG/Copper Plate
Service :
ODM/OEM
Color :
White/Yellow Zinc/Gold Zinc
Cushion Material :
TPE
Usage :
HVAC
Package :
Carton Box
Description

Electric zinc stainless steeel 304 316 strut mounting cushion clamps cush a clamp

Products:Cushion Clamp

Features:

1) Stud Securely fastened to one clamp half.
2) Nylon insert nut assures a positive lock .
3) Cushion material is a thermoplastic elastomer resistant to most fuels, oils,gases, greases, solvents, mineral acids, chemicals and industrial cleaners,Temperature range -65°F to +275°F
4) Available size from 1/4" - 6Pipe"

5) Fast and simple installation - one person/one tool required.

6) Modular design allows adding or changing piping without disturbing adjacent tube.

7) Tube sizes can be mixed to suit installation requirments.

8) Metal components are Tri-Valent (non-hex) plated.

9) Also available in 304 and 316 stainless steel.
Applications:

  • Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware.
  • Ideal for multiple runs while absorbing shock and vibration, reducing unwanted noise, and preventing galvanic corrosion.
  • Interlock edges and channel locator legs to help ensure that the cushion remains in place.

Specifications:

Part No. Tubing Size Pipe Size Pipe OD (inch) Finish
CC-1/4 1/4” - 0.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8 3/8” - 0.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2 1/2” - 0.5 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/4-P - 1/4” 0.54 GOLD ZINC/EG/HDG/SS304/SS316
CC-5/8 5/8” - 0.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8-P - 3/8” 0.67 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4 3/4” - 0.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2-P - 1/2” 0.84 GOLD ZINC/EG/HDG/SS304/SS316
CC-7/8 7/8” - 0.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1” - 1.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4-P - 3/4” 1.05 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/8 1-1/8” - 1.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4 1-1/4” - 1.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-1-P - 1” 1.31 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/8 1-3/8” - 1.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/2 1-1/2” - 1.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 5/8 1-5/8” - 1.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4-P - 1-1/4” 1.66 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/4 1-3/4” - 1.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 7/8 1-7/8” 1-1/2” 1.90 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 2” - 2.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/8 2-1/8” - 2.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/4 2-1/4” - 2.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 3/8 2-3/8” 2” 2.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/2 2-1/2” - 2.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 5/8 2-5/8” - 2.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 7/8 2-7/8” 2-1/2” 2.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 3” - 3.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/8 3-1/8” - 3.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/2 3-1/2” 3” 3.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 5/8 3-5/8” - 3.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/8 4-1/8” - 4.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/2 4-1/2” 4” 4.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-6 6” - 6.00 GOLD ZINC/EG/HDG/SS304/SS316

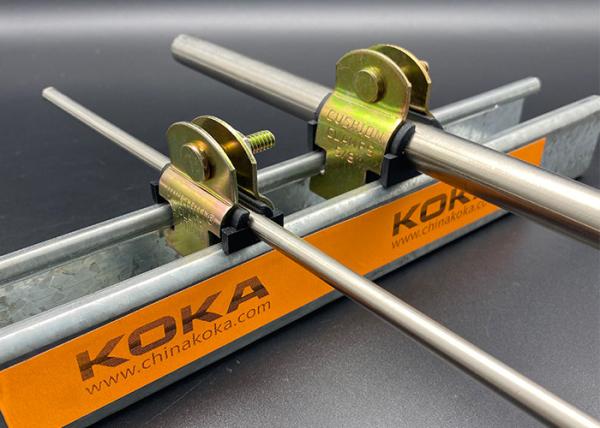

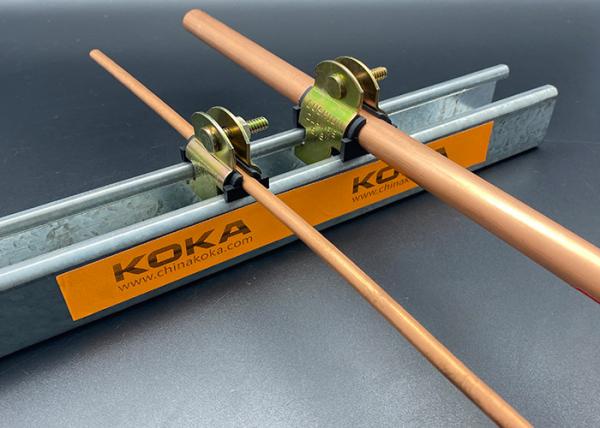

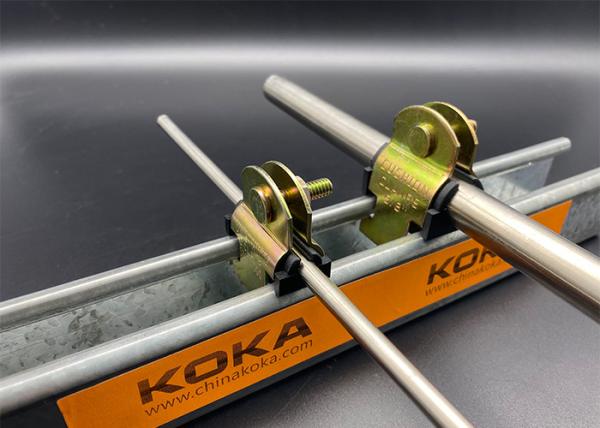

Product Show:

TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235 TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235

TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235 TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235

Package:

TPE Strut Cushion Clamps 304 Strut Mounting Cushion Clamps  Q235

FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
