OBDII Check Engine Light Diagnostic Code Reader Scan Tool for 12V Car

konnwei catalog-official- new arrival.pdf

Description:

With kw901 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

kw901 scantool is a high-quality automotive scanning tool, supports all OBD-II mode.

The device is a small adapter that plugged into the vehicle OBD-connector.

you will be able:

Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

Turn off the MIL (signal Check Engine).

Download data to external media in a variety of formats for later printing.

Record various parameters, display graphics in real time, and more.

Key parameter:

Features:

Condition:New

Compatability:OBD2

Country/Region of Manufacture: China

Supply voltage(VDD):12V

Work temperature range: -20 ~ +70degree

Storage temperature range:-40 ~ +125degree

RF sensitivity(Basic Rate): -85db

Modulation Mode:GFSK

Frequency Range:2402 ~ 2480MHZ

Transmission Range:10M

Bluetooth Profile:SPP

UART Params:38400,8,n,1

Small size, compact structure. Plug and never unplug

Stable wireless connection

No wires or batteries (adapter is powered by the diagnosis size sockets)

Stop communication, wait half an hour, auto sleep

Supports all OBDII protocols

The adapter uses the fastest and most reliable 25K80 chips

KW901 mini scanner Specifications:

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Dimensions: 2.75 x 1.25 x 1.2 inches

Connection Type: Wifi

Supply voltage(VDD):12V

Work temperature range: -20 ~ +70degree

Storage temperature range:-40 ~ +125degree

Application :

1. Konnwei KW901 Used For All 12V Gasoline And Diesel Car After 1996 With OBD2 EOBD Protocol

2. Konnwei KW901 Support the following Protocols :

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

Functions:

• Vehicle Speed
• RPM
• Fuel Consumption*
• Engine Coolant Temp
• Fuel Pressure
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure
• Air Intake Temp
• Timing Advance
• Mass Air Flow
• Fuel Level
• Barometric Pressure
• EVAP System Vapor Pressure
• Fuel Trim

Package :

1* KW901 WIFI Scanner

1* Software CD

1* English User Manual

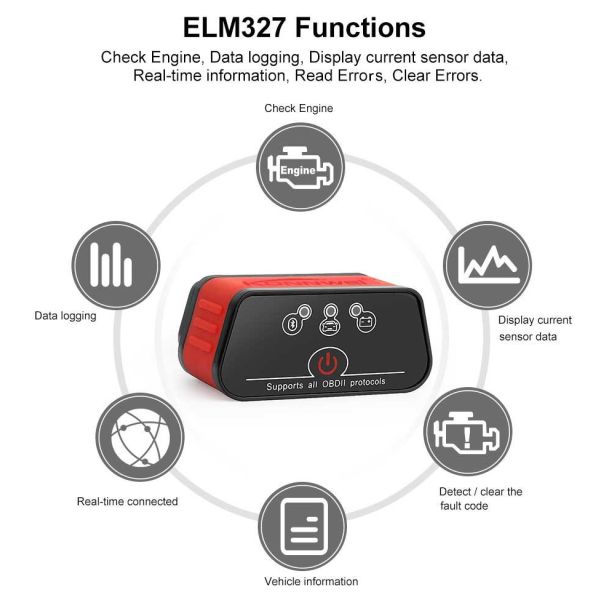

Function display:
