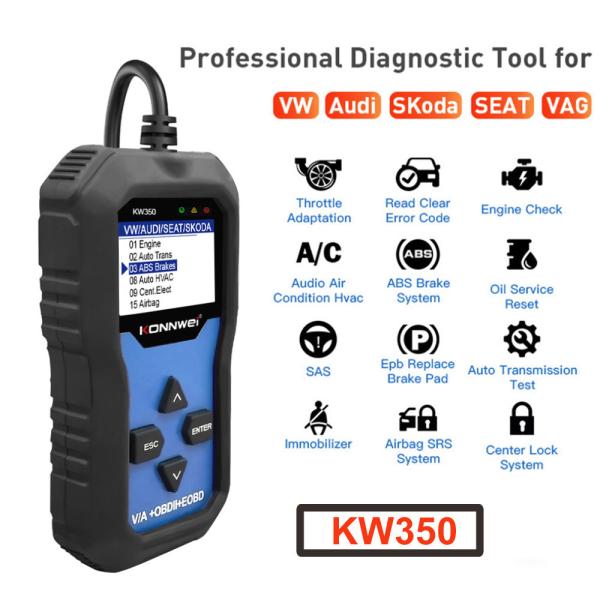

OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi
Specifications
Brand Name :
Konnwei
Model Number :
KW350
Certification :
Patent, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Visa, Paypal, L/C, D/A, D/P
Supply Ability :
50,000pcs obd2 scanner codes per month
Delivery Time :
for samples, stocks are available; 5000pcs obd2 scanner codes in a week
Packaging Details :
Model : KW350 Item size( cm):12.7*7.8*2.0 package size (cm):18.3*5.3*15.2 Item Net weight(kgs):0.34kg Package Gross weight(Kg):0.38kg qty/cn : 50pcs/cn Carton size : 52*51*33.5CM, Carton Weight : 21.15KG/carton
Product Name :
KW350 Full system car fault code scanner
IC chip :
STM32F103VCT6
Main Function :
Read and erase fault codes
Application :
For VAG/ Audi/Skoda/Seat series vehicles
Feature1 :
Lifetime upgrade free and print data on PC
Feature2 :
Factory direct sales,cheapest with high quality
Display :
2.4 inches Black White Screen
Connection :
Standard 16PIN OBD Diagnostic Interface
Warranty :
1 year
Description

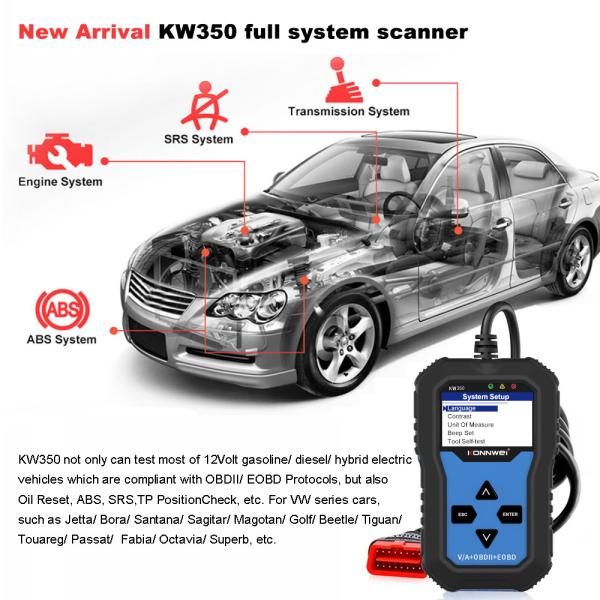

Full system scan tool KW350 support OBD2 and EOBD protocol ABS SRS Transmission engine scanner for Seat Skoda audi vw

Product Description

KW350 Full system diagnostic scanner can work on 101 system on ECU for VAG Series car such as JETTA/Bora/Santana/Sagitar/Magotan/Golf/Beetle/Tiguan/Touareg/Passat/ Fabia/Octavia/Superb, etc.

4 Special Function: Auto oil reset, throttle learning, Brake Pad replacement, Battery matching.

It is able to shut down the engine, automatic transmission, ABS Brake and SRS airbag, transmission, warning light, engine, Oil Reset, TP Position Check, Brake Pad Reset, power, classis, vehicle body information, air conditioner and others system. etc.

Most importantly, KW350 supports All 12V Gasoline And Diesel Vehicles /Hybrid Electric Vehicles with OBD2 EOBD protocols.

Built-in a DTC lookup library you can find the related code definitions to help you determine if your car needs repair, save your time and money.OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi

Top Reasons to get KW350
1. Read and erase fault codes of 101 system of VAG cars(ABS, Airbag SRS, EPB Reset, Transmission...)
2. 4 special functions: Oil reset service, throttle learning, Brake Pad replacement, Battery matching
3. With an additional function OBD2 ENGINE scanner.

4. Automatic Scanner System, easy to operates:

Key parameters:

Brand KONNWEI
Product name KW350 Full system car diagnostic scanner
Main function Read and erase fault codes, read live sensor data
Feature1 2.4 Inches TFT colorful screen
Feature2 support OBDII EOBD
Feature3 ABS SRS Transmission engine scanner for Seat Skoda audi vw
Language English and German
Material ABS
Certificate CE FCC ROHS MSDS REACH
Color Black+blue only

OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi

Functions for VAG:
01. MENUCOMM: Engine, Auto Transmission, ABS Brakes, Auto Air Condition HVAC, Cent_Elect, Airbags, Steering Wheel, Instruments and so on.
02. MENUDRIV: Engnie, Diesel Pump, AWD etc.
03. MENUCHAS: ABS Brakes, Susp_Elect, Chassis Control, Airbags, Steering Assist, Tire Pressure and so on.
04. MENUCOMF: AutoHVAC, Position Sensing, Steering wheel, Aux. Heat, LaneChange, Central Cony etc.
05. MENUELEC1: Immobilizer, Instruments, Cent_Elect, Navigation, CAN Gateway, Tow protection etc.
06. MENUELEC2: Data Transfer, Media Player, CtrlHeadDash, Inform_Electr etc.

KW350 Specification :


1) Display: Backlit, 128 × 64 pixel display with contrast adjustment
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) External Power: 8.0 to 18.0 V power provided via vehicle battery
5) Dimensions: 12.7*7.8*2.0cm

Packing list:

1* KONNWEI KW350 Scan Tool

1* User Manual in English

1* USB Cable

1* Durable Nylon Storage Case

OBD2 EOBD Full System Diagnostic Scanner Konnwei KW350 for Audi

A letter for you:

Dear Boss:


This’s Jolly from konnwei in Shenzhen China, we are a High-tech manufacturer focused on R&D, production and sales of car diagnostic tools with 15years, All KONNWEI items on market are originated from us.

Our diagnostic tools will save you money, time and energy from expensive mechanics for routine check-ups and find potential problems in the car precisely.

Should you have any interests or questions, pls do not hesitate to consult me.

OEM logo and manual are available.

Best regards!
Jolly Peng

Whatsapp"+ 8613534169082
