Car code reader 12V vehicle OBD2 EOBD Diagnostic tool ELM 327 BT wireless 3.0 KW902 Support android

KW902 description:

The device is a mini scanner that plugged into the vehicle OBD-connector.

On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures.

Doing these simple operations, you will be able:

1. Measure the fuel consumption.
2. Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intaketemperature, and more.
3. Turn off the MIL (signal Check Engine).
4. Download data to external media in a variety of formats for later printing.
5. Record various parameters, display graphics in real time, and more.

Key parameters:

Function:

1.Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

2.Turn off the MIL (signal Check Engine).

3.Download data to external media in a variety of formats for later printing.

4.Record various parameters, display graphics in real time, and more.

Features:

1. Supply voltage(VDD):12V
2. Work temperature range: -20 ~ +70C
3. Storage temperature range:-40 ~ +125C
4. RF sensitivity(Basic Rate): -85db
5. Modulation Mode:GFSK
6. Frequency Range:2402 ~ 2480MHZ
7. Transmission Range:10M
8. Bluetooth Profile:SPP
9. UART Params:38400,8,n,1
10. Small size, compact structure. Plug and never unplug
11. Stable wireless connection
12. No wires or batteries (adapter is powered by the diagnosis size sockets)
13. Stop communication, wait half an hour, auto sleep
14. Supports all OBDII protocols
15. The adapter uses the fastest and most reliable ARM chips

Supports protocol and language:

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

These software support a lot of languages, like Russian, Spanish, French, German, English, Italian, Portuguese...etc.

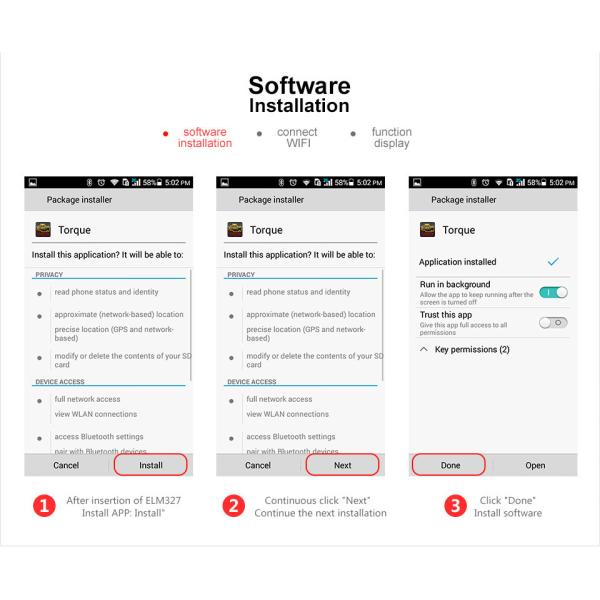

( you can download the app : For Torque, to see whether it include your country language.)

Package includes:

1 * KW902

1 * User's manual

1 * CD

KW902 bluetooth scnaner pictures :
