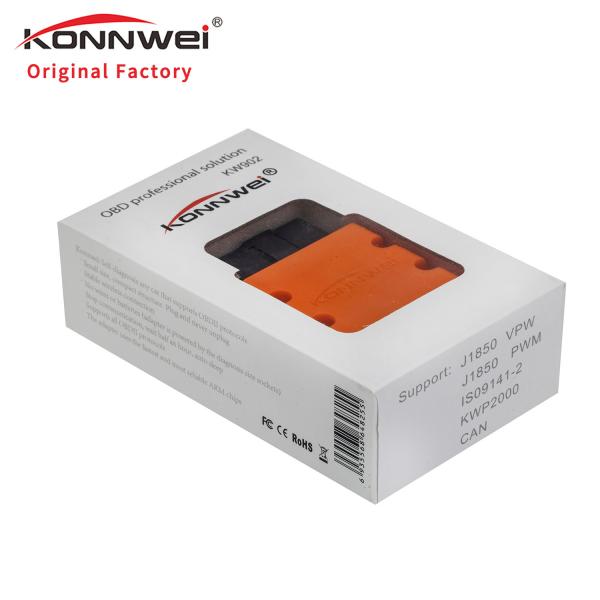

Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type
Specifications
Brand Name :
Konnwei
Model Number :
KW902 WIFI
Certification :
Patent, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Visa, Paypal, L/C, D/A, D/P
Supply Ability :
50,000pcs obd2 scanner codes per month
Delivery Time :
for samples, stocks are available; 5000pcs obd2 scanner codes in a week
Packaging Details :
Model : KW902 wifi mini scanner Item size( cm):4.5*5.7*2.5cm package size (cm):12*7.5*4 Item Net weight(kgs):0.048 Package Gross weight(Kg):0.1 qty/cn: 100pcs/ cn, Carton size : 39*25.5*36cm, Carton Weight :10.65kg/carton
Product Name :
KONNWEI KW902 wifi mini scanner
Main Function :
Read Trouble Code
Feature1 :
Unique design and premium material
Feature2 :
Manufacture factory direct sales ,cheap and high quality
Auxiliary phone software :
Dashcommand , Torque
Color :
5 colors optional
Application :
Support OBDII compliant 12V car
Language :
English defaulted and can select the language you need
Warranty :
1 year
OEM/ODM :
Welcome
Description

OBD2 MINI Diagnostic scan tool WIFI Code Scanner Konnwei KW902 25k80 Chip multi language

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific

2.Over 3000 generic code definitions in the database

3.Clear trouble codes and turn off the MIL ("Check Engine" light)

4.Display current sensor data, including:

  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • 1Short Term Fuel Trim

Key parameter:

Item Name KW902Wifi
Chip 25K80
Connection Wifi
color six colors optional
Language Can use phone to select the language you need,english default
Range 50 ft (Line of sight)
Warranty 1 year
OEM/ODM Welcome

Specifications:

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Support Protocol:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

Package includes:

1x KW902 WIFI Scanner

1x Software CD

1x English User Manual

Pictures:

Konnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini TypeKonnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini TypeKonnwei KW902 25k80 OBD2 WIFI Diagnostic Code Scanner Mini Type

Related Product :
IC chip STM32F103VCT6
Main function Read and erase all BOD2 engine fault codes
Display Mode 2.8 inch TFT HD color screen(320 x 240 dpi), built-in speaker
Feature upgrade system online life time free print data
Language Support 9 languages
Support System XP WIN7 WIN8 WIN10
Certificate CE FCC ROHS MSDS REACH
color Black & Red optional
