Specifications
Brand Name :
Konnwei
Model Number :
KW650
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Visa, Paypal, L/C, D/A, D/P
Supply Ability :
50,000pcs obd2 scanner codes per month
Delivery Time :
for samples, stocks are available; 5000pcs obd2 scanner codes in a week
Packaging Details :
Model : KW650 Item size( cm):12.5*7*2 Package size cm):18.3*5.3*15.2 Item Net weight(kgs):0.3 Package G.weight(Kg):0.39 qty/cn : 50pcs/cn, Carton size: 51*49*39CM Carton Weight : 21KG/ carton
Product Name :
KONNWEI KW650 Lead Acid battery tester
Main Function :
Battery test & Cranking test & Charging test
Function2 :
Test Result Good, Recharge or Replace
Application :
All 6-16V vehicle and motorcycle Batteries
IC chip :
STM32103VCT6
Display mode :
2.4 inch LCD colorful screen
Feature :
Lifetime upgrade free and print data on PC
Language :
13 international languages
Warranty :
12 months
Power :
from car battery
Function :
Test Capacity
Oem :
Available
Type :
battery Capacity tester,12v Battery Tester
Description

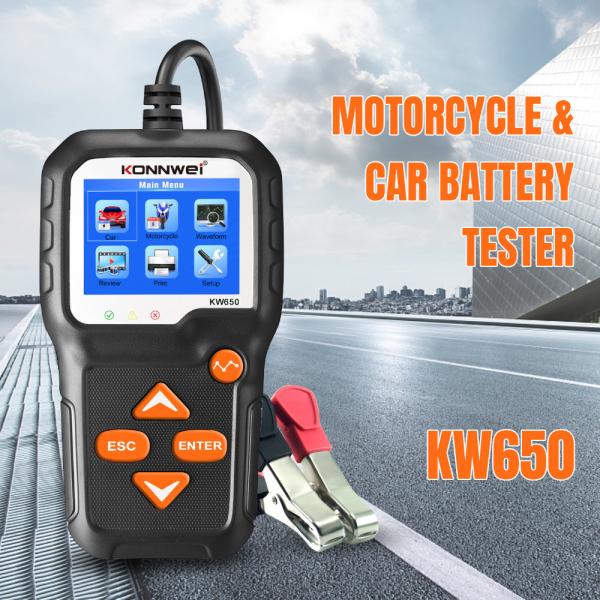

KONNWEI KW650 Battery analyzer 6-16V vehicle motorcycle battery test results good, recharge,replace

Product Name: KW650

KONNWEI KW650 battery tester is the newest battery tester upgraded from the black-white screen tester, in order to check battery health faster and more accurately, including check the alternator working status.

Not only support Battery Health Test, but also Battery Cranking Test, BatteryCharging Test.

It's a professional automotive battery diagnostic tools for your battery issues by the graphing voltage monitoring tool, with its 2.4 inch color screen and unique pattern design.

the KONNWEI KW650 is a perfect battery testing tool for you.

Hand-held 2.4 inch 6-16V Vehicle Battery Test Tool KONNWEI KW650 with update and printHand-held 2.4 inch 6-16V Vehicle Battery Test Tool KONNWEI KW650 with update and print

Key Parameter:

Item Type Diagnostic Tools BatteryTester
IC chip SMT32F103C8T6 Chip solution
Function1 Battery test&Cranking test&Charging test
Function2 Test Result Good, Recharge or Replace
Color Black only
Display 2.4 inch LCD colorful screen
Language 13 international languages
Support system XP WIN7 WIN8 WIN10
Feature Support free system upgrade and print data on PC
Power requirement No internal batteries required
Material ABS housing

Key Functions :

Volts and Voltage test in waveform

Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

Internal resistance value (mΩ) and Life in percentage (%)

Cranking system and Charging system

Record and re-play battery data, Life-time free update service

Battery test, cranking test, charging test and other additional functions.

Support Languages: Chinese, English, German, French, Japanese, Korean, Dutch, Russian, Spanish, Italian, Portuguese, Polish, Persian.

Advantages:

  • TOP battery tester on Aliexpress
  • Color screen battery tester
  • Imported STM32103VCT6 Chip.
  • Graphical battery test results.
  • U-I waveform, also can be printed out
  • Test results storage and review.
  • Battery report can be printed out on PC.
  • Support free update online lifetime.

Support:

Battery types:

Regular flooded battery, will support AGM flat plate battery, AGM spiral battery, GEL and EFB battery in the future after updating.


Battery Standards:
CCA:100-2000 / BCI:100-2000 / CA:100-2000 / MCA:100-2000.
JIS:26A17-245H52 / DIN:100-1400 / IEC:100-1400 / EN:100-2000 /SAE:100-2000.


Specification:
System Voltage: 6-16 Volts.
Input Voltage Range: 6V-16V.
No internal batteries required.
Operating Temperatuer: 0℃-50℃.
Storage Temperature: -20℃-70℃.

Package includes:

1*KONNWEI KW650 Auto Diagnostic Scanner

1*Mini USB cable

1*User’s Manual

1*packing box

1*nylon bag
