KONNWEI KW210 Car Auto Diagnostic tools for 12V Universal car Battery Tester Support free upgrade Print on PC

description:

KONNWEI KW210 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status. It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.

Key Parameter:

KW210 battery tester key functions & features:

1.System voltage: 12 Volts

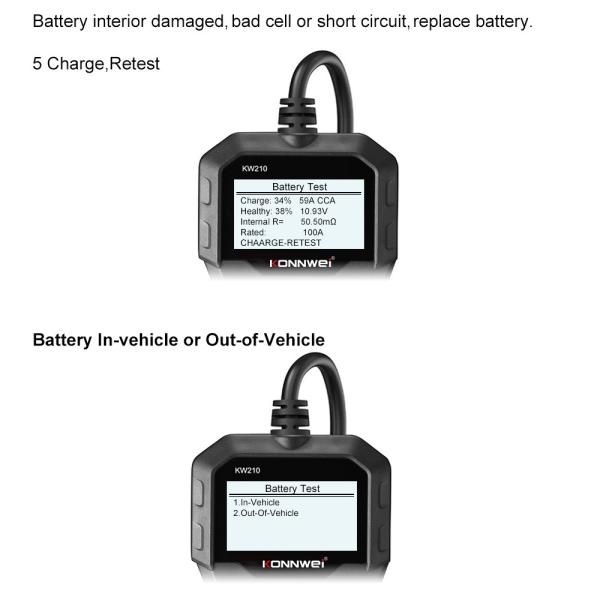

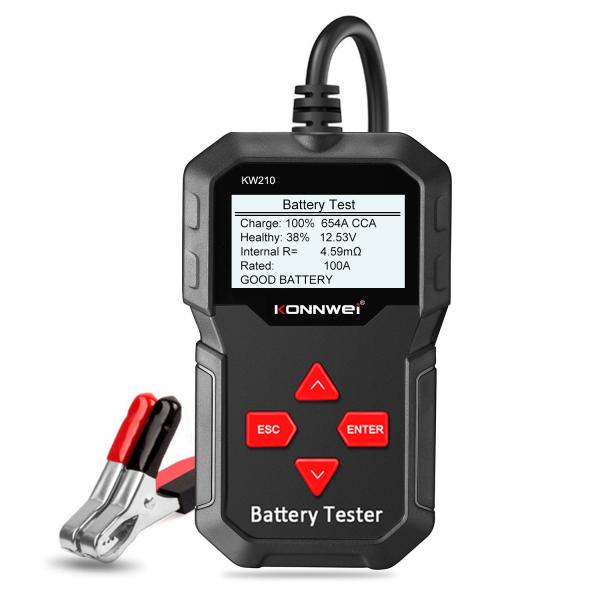

2.Test Result: Good, Recharge or Replace

3.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

4.Internal resistance value (mΩ)

5.Life in percentage (%)

6.Cranking system

7.Charging system

8.Voltage test in waveform

9.Record and re-play battery data, Life-time free update service

10.Battery test, cranking test, charging test and other additional functions.

Specifications and Support Languages:

1.Measure Standard

2.CCA:100-2000

3.BCI:100-2000

4.CA:100-2000

5.MCA:100-2000

6.JIS:26A17-24SH52

7.DIN:100-1400

8.IEC:100-1400

9.EN:100-2000

10SAE:100-2000

11.GB:100-1400

12Display: Color TFT LCD Screen

13.System Voltage:12 Volts

14.Input Voltage Range:8V-16V

15.Power Requirements: No internal batteries required.

16.Power on when hooked up during testing.

17.Operating Temperature:0℃-50℃

18.Storage Temperature:-20℃-70℃

Support 8 Languages : English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese

Application:

Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.

Package includes:

1*KONNWEI KW210 Auto Diagnostic Scanner

1*Mini USB cable

1*User’s Manual

1 *Nylon bag
