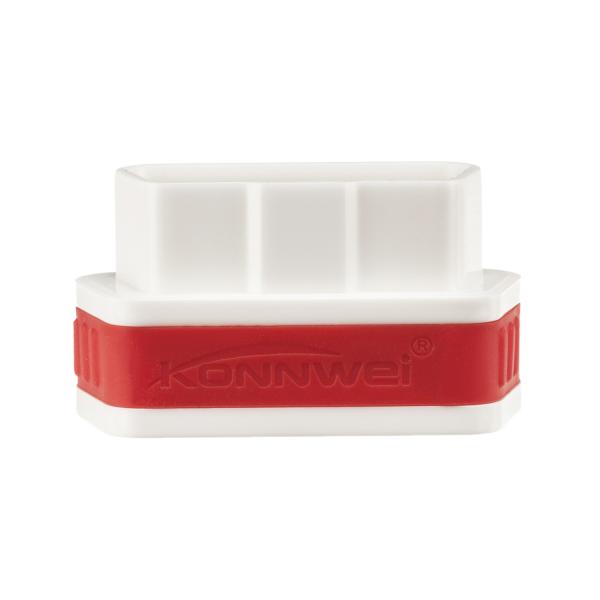

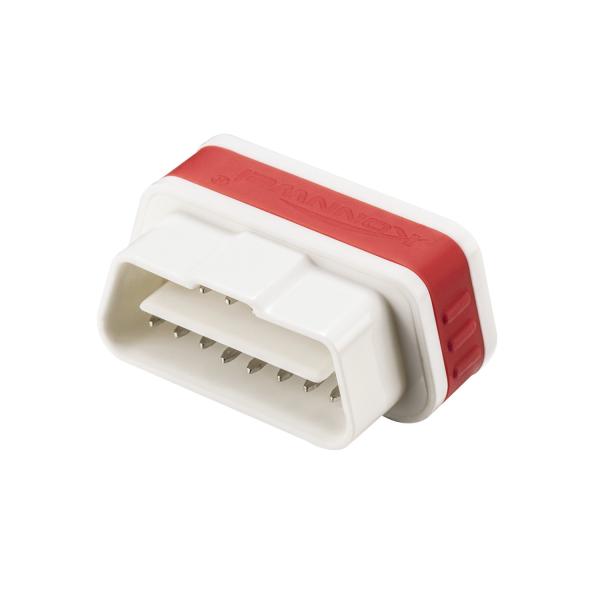

Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
Specifications
Brand Name :
KONNWEI
Model Number :
KW901 wifi
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Visa.
Supply Ability :
35000 pieces per month
Delivery Time :
1000pieces in 7days
Packaging Details :
Package Size :12*7.5*4cm Net Weight: 0.028kg Gross Weight: 0.082kg Qty/Ctn: 100pcs/ Ctn Carton Size: 39*25.5*36cm Carton Weight: 9.2KG/carton
Brand :
KONNWEI
Name :
OBD2 Konnwei car diagnostic tool
Function :
detect and interpret these protocols automatically
Protocols :
J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN
Description :
OBD2 automotive fault Data code reader
Feature :
Small size and compact structure, plug and play.
Support system :
both android and apple are available. Android is free turque but ios is unfree dashcommand; Don't support upgrade system and print
Display :
Smart phone or PC
Description

konnwei kw901 WIFI Diagnostic Scanner / Wifi car diagnostic scanner car diagnostic tool

Model KW901 WiFi
Function Car engine tester
LCD Screen
Size(Inch)		 N/A. will show through your smart phone or Laptop with wifi logo
Application Can detect 12V gasoline and diesel cars
IC Chip 25K80 Chip

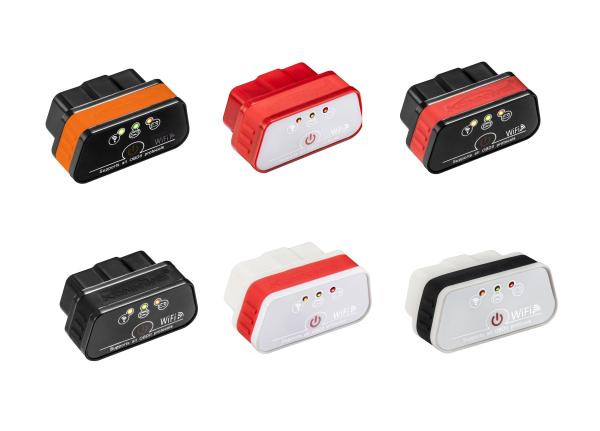

Color 6 Colors: Black White/ White Red/Black/ Black Orange/Black Red/ Red
Languages

English is default language, please select the language you need on phone settings interface
Support systems Both android and apple are available. Android is free torque but ios is unfree dashcommand;
Don't support upgrade system and print
Battery function don't support battery test function
Support protocols
ISO 9141
KWP2000
SAE J1850
CAN
J1850 VPW
J1850 PWM
Packing list 1*KW901WIFI Scanner+1* Software CD1+1*English User Manual
Package Info Package Size :12*7.5*4cm
Net Weight: 0.028kg
Gross Weight: 0.082kg
Qty/Ctn: 100pcs/ Ctn
Carton Size: 39*25.5*36cm
Carton Weight: 9.2KG/carton
Main features
KW901 able to detect and interpret these protocols automatically.It also provides support for high speed communications and a low power sleep mode.It use AT commands to communicate with a host device (PC, notebook, , iPod touch, iPad and so on).
You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and vwell explained.KW903 measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation.It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles.Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.


KW901 are able to detect and interpret these protocols automatically. It also support high speed communications and a low power sleep mode.
It use AT commands to communicate with a host device (PC, notebook, iPod touch, iPad and so on).
There are plenty of software packages available. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter etc.
You can even write your own software on a specific hardware platform if you wish, because the AT commands are fully documented and well explained.
KW901 is easy installation. It also included with a powerswitch built-in. It is compatible with 1996 and later vehicles.Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.
Protocols :
0. Automatic T 1.SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)

OBD-II Software for ELM327 bluetooth is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Torque, OBD Car Doctor, DashCommand, EOBD, Mini OBD;
Symbian version: OBDScope.

IOS version: Mini OBD.

Support System:IOS

Small Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC DisplaySmall Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC DisplaySmall Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC DisplaySmall Size WIFI Diagnostic Scanner Konnwei Kw901 25K80 Chip Smart Phone / PC Display
