24 Months warranty worry free lifetime free upgradeable battery load tester kw600 support read real-time data

24 Months warranty worry free lifetime free upgradeable battery load tester kw600 support read real-time data key functions & features:

1. System voltage: 12 Volts
2. Test Result: Good, Recharge or Replace
3. Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4. Internal resistance value (mΩ)
5. Life in percentage (%)
6. Cranking system
7. Charging system
8. Voltage test in waveform
9. Record and re-play battery data, Life-time free update service
10. Battery test, cranking test, charging test and other additional functions.



Specifications and Support Languages of 24 Months warranty worry free lifetime free upgradeable battery load tester kw600 support read real-time data
1. Measure Standard
2. CCA:100-2000
3. BCI:100-2000
4. CA:100-2000
5. MCA:100-2000
6. JIS:26A17-24SH52
7. DIN:100-1400
8. IEC:100-1400
9. EN:100-2000
10 SAE:100-2000
11. GB:100-1400
12 Display: Color TFT LCD Screen
13. System Voltage:12 Volts
14. Input Voltage Range:8V-16V
15. Power Requirements: No internal batteries required.
16. Power on when hooked up during testing.
17. Operating Temperature:0℃-50℃
18. Storage Temperature:-20℃-70℃
19. Weight:0.4Kg

Support language: English, French, Spanish German, Japanese, Russian, Italian, Portuguese, Polish, Dutch



Application of 24 Months warranty worry free lifetime free upgradeable battery load tester kw600 support read real-time data :

Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported.

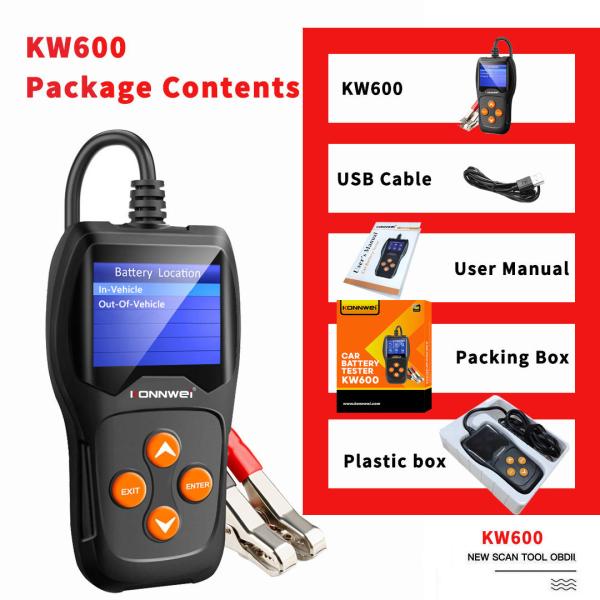

Package includes:
1*KONNWEI KW600 Auto Diagnostic Scanner
1*Mini USB cable
1*User’s Manual



More pictures of 24 Months warranty worry free lifetime free upgradeable battery load tester kw600 support read real-time data
