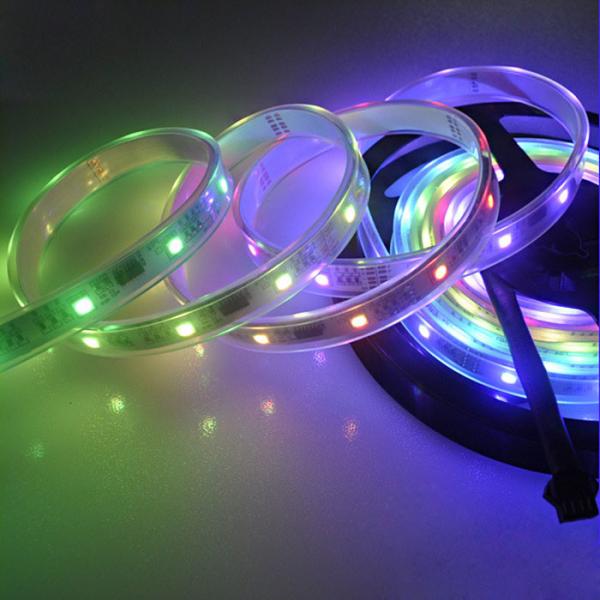

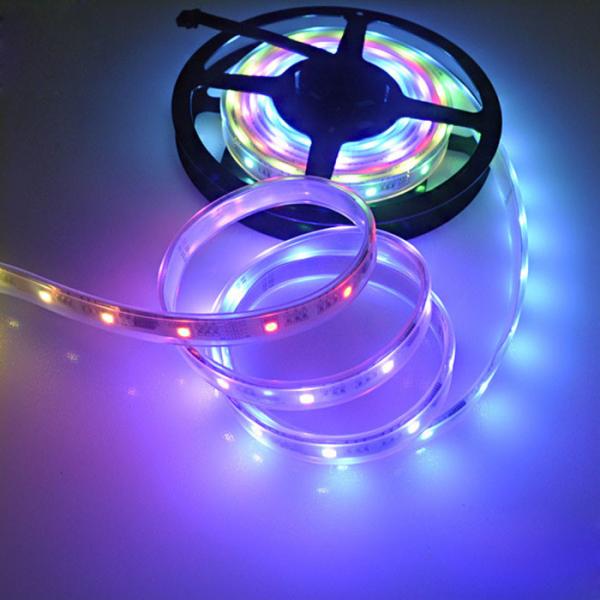

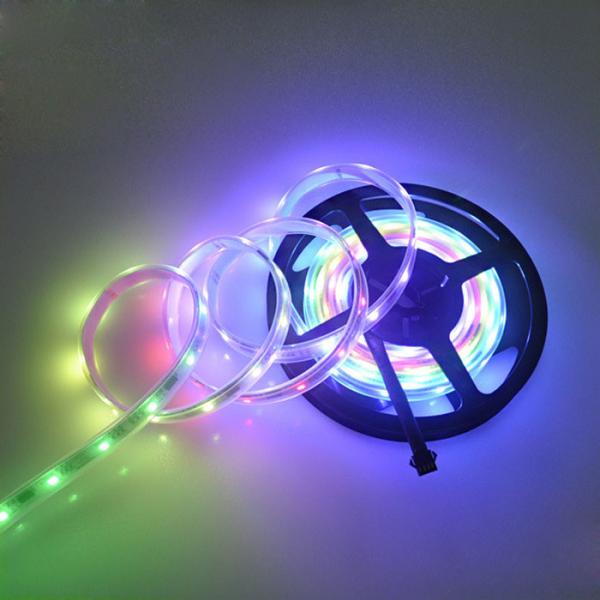

KooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
KooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
KooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
KooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
KooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
KooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
Specifications
Brand Name :
OEM
Model Number :
234527
Certification :
CE, ROHS
Place of Origin :
CHINA
Payment Terms :
Western Union
Description

TM1809 Addressable IC Solution flexible led pixel Strip Lights

TM1809 Addressable IC Solution led strip lights

DC5V 30 LED TM1809 Addressable led strip
Specifications:
1) Voltage: DC 5 Volt
2) IC type: TM1809
3) IC quantity: 10pcs/meter, one IC drive 3 led chips.
4) LED type: SMD5050 RGB
5) LED quantity: 30pcs/meter
5) Pixel: 30 Pixels / meter, 3 led chips in one Pixel
7) Max power: 9Watts/meter
8) Bit: 8 bit
9) Greyscale: 256 level.
10) Package: 5meters/reel/anti-static bag

11) Waterproof IP67.

Connection:
1) Signal wire: DC+, DIN, GND
2) DC+ and GND connect to power supplier; DIN and GND connect to controller
3) Relative controller: SPI controller support TM1809; when use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each Pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product.

KooSion TM1809 Addressable IC Solution flexible led pixel Strip LightsKooSion TM1809 Addressable IC Solution flexible led pixel Strip LightsKooSion TM1809 Addressable IC Solution flexible led pixel Strip Lights
