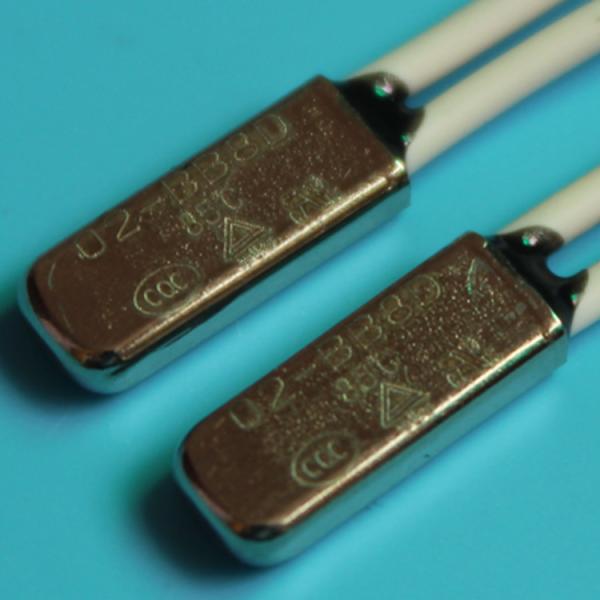

TB02 small size battery thermal protector thermal fuse 250V/5A 40--180C UL VDE RoHS
TB02 small size battery thermal protector thermal fuse 250V/5A 40--180C UL VDE RoHS
Specifications
Brand Name :
Esun
Model Number :
17am,KSD301,ksd302.BW9700
Certification :
UL,VDE,RoHS
Place of Origin :
china
MOQ :
500
Price :
0.25usd
Payment Terms :
T/T;paypal
Supply Ability :
80000PCS/WEEK
Delivery Time :
15days
Packaging Details :
bags cartons
voltage :
250V
current :
5A
shell :
plastic and metal
temp range :
45--160C
wire length :
70mm
Description

TB02 small size battery thermal protector thermal fuse 250V/5A 40--180C UL VDE RoHS
TB02 small size series motor protection applications:
● Ballast
● fluorescent
● Motor
● Transformers
● laminator
● Rechargeable battery
● Solenoid
● Appliances
● PCB board
TB02 series motor protector Features:
● simple design structure Minato
● can simultaneously sensing temperature and current
● Fast and accurate motion
● according to customer's requirements riveting all kinds of lead
● riveting can be divided into the same wire to the terminal to the two kinds with different
TB02 series motor protector Specifications:
● function: single-hop features, automatically disconnect the circuit temperature
● Rated voltage 22A/125V 10A/250V 20A/16VDC
● Operating temperature range 50-180 ℃
● Operating temperature tolerance ± 2 ℃ ± 3 ℃ ± 5 ℃
● the number of operations ≥ 10000 times

TB02 series motor protection device rated action temperature table


Temperature Specifications

Operating temperature range of foreign control models

Temperature Specifications

Operating temperature range of foreign control models

TB02 050℃

50±5.0℃

TB02 115℃

115±5.0℃

TB02 055℃

55±5.0℃

TB02 120℃

120±5.0℃

TB02 060℃

60±5.0℃

TB02 125℃

125±5.0℃

TB02 065℃

65±5.0℃

TB02 130℃

130±5.0℃

TB02 070℃

70±5.0℃

TB02 135℃

135±5.0℃

TB02 075℃

75±5.0℃

TB02 140℃

140±5.0℃

TB02 080℃

80±5.0℃

TB02 145℃

145±5.0℃

TB02 085℃

85±5.0℃

TB02 150℃

150±5.0℃

TB02 090℃

90±5.0℃

TB02 155℃

155±5.0℃

TB02 095℃

95±5.0℃

TB02 160℃

160±5.0℃

TB02 100℃

100±5.0℃

TB02 165℃

165±5.0℃

TB02 105℃

105±5.0℃

TB02 170℃

170±5.0℃

TB02 110℃

110±5.0℃

TB02 175℃

175±5.0℃

TB02 180℃

180±5.0℃


Description: 17AMKP and TP-D is the same type of product, reset the temperature of the standard action temperature 2 / 3, a tolerance of ± 15 ℃, or specified by the user.
