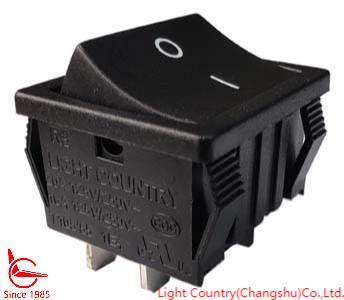

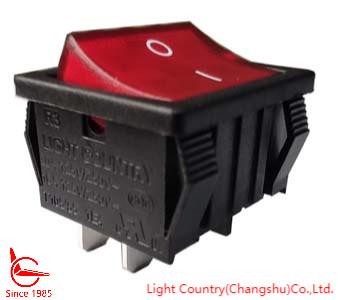

Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V
Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V
Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V
Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V
Specifications
Brand Name :
LIGHT COUNTRY
Model Number :
R3
Certification :
UL, CUL, VDE, ENEN, CQC.
Place of Origin :
China
MOQ :
1000pcs
Price :
Depend on spec and qty.
Delivery Time :
30days
Packaging Details :
Bag and Carton
Supply Ability :
50K/day.
Payment Terms :
T/T
Factory Name :
Light Country(Changshu)Co.,Ltd
Switch Size :
24*21mm
Function :
ON-OFF
Voltage :
125V AC, 250V AC
Current :
15A, 16A, 20A
Lifetime :
More than 10,000pcs
Description

1. Factory Introduction.

Light Country was founded in 1985, headquater located in Taiwan.

We have been dedicating on switch, our main products are thermostat, rocker switch, push button switch, water-proof switch, photoelectric switch, slide switch and rolling-ball vibration switch. These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on. They could be customized designed based on end-customer's demand.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well. We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.

We promise reasonable price, stable quality, timely delivery and superior service.

2. R3 ON-OFF Rocker Switch Specification.

Factory Light Country(Changshu)Co.,Ltd
Electrical rating 20A 250V AC/125V AC, 16A 250V AC/125V AC
Product Size 24*21mm
Installation Hole Size 21.8*18.6mm
Mechanical life endurance >30,000 cycles
Electrical life endurance >10,000 cycles
Housing Color Black(More options available, please contact us.)
Housing Material PA66
Rocker Color Black/Red(More options available, please contact us.)
Rocker Material PA66/PC
Contacts Silver alloy
Terminals Brass with silver plated
Contact resistance <20mΩ
Insulation resistance ＞1000MΩ(500DC between open contacts)
Ambient temperature T105/55
Ambient humidity Max.85%
Actuating force 3~8N(depend on different switch functions)
Flammability UL 94V-2, UL 94V-0, glow-wire, needle flame test
Solder ability of terminal Max 350℃, 3S (no pressure can be placed on terminals when soldering by hand.)

3. R3 Rocker Switch Function Options.

Item Function
1 ON-OFF
2 ON-ON
3 ON-OFF-ON
4 ON-(ON)
5 OFF-(ON)
6 (ON)-OFF-(ON)
7 ON-(OFF)
8 ON-OFF-(ON)
9 ON-OFF(With Lamp)

4. R3 Rocker Switch Dimension.

Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V

5. If the picture R3 Rocker Switches could not meet your demand, please turn to below "Rocker Switch specification" for more models.

Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V

Thanks for your patience for looking at our products, kindly contact with us via below ways,

Sales: Thomas Lee/Julie Liu

Tel: +86 138 6234 1050/+86 180 2126 2273

Mail: lixin@liangqundianzi.cn or ksd301@aliyun.com.cn

WhatsApp: +86 158 5080 2713
