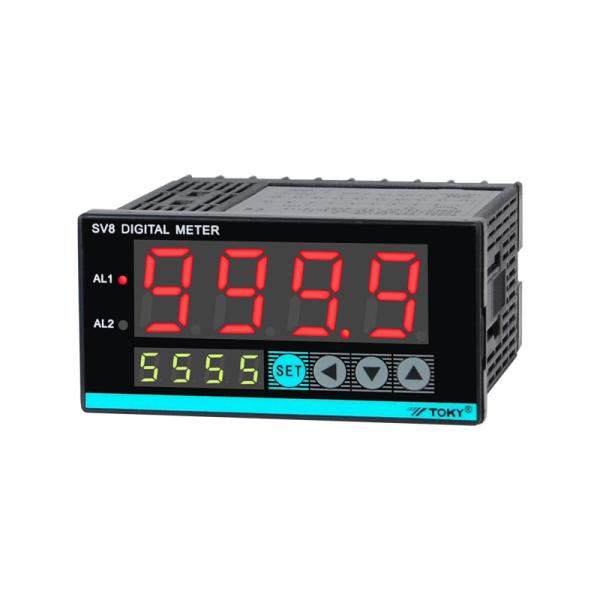

SV-W Series 4digits Display Sensor Indicator RS485 Modbus RTU Protocol
SV-W Series 4digits Display Sensor Indicator RS485 Modbus RTU Protocol
Specifications
Brand Name :
Toky
Model Number :
SV-W series
Certification :
CE
Place of Origin :
China
MOQ :
5sets
Payment Terms :
T/T
Delivery Time :
15~35days
Packaging Details :
Carton
Usage :
Industrial
Power supply voltage :
100～240V AC/DC，50/60Hz
Power consumption :
≤5W
Accuracy :
0.5%FS
Working environment :
0～50℃ ＜85%RH
Analog output :
4～20mA
Environmental standard :
IEC 60068-2
Safety standard :
IEC 61010-1，UL61010-1
Communication :
RS485
Baud rate :
4.8kbps、9.6kbps
Description

SV-W Series 4digits display sensor indicator, RS485, Modbus-RTU protocol, 2 loop settable relay alarm output
1. Features and advantages:
a). TC,RTD,Standard work analog signal input,selected by software.
b). 2 loop settable relay alarm output.
c). Isolated analog 4-20mA output.
d). Supply 24V/12VDC,max 30mA isolated auxiliary power,or±12V/60mA common ground power.
e). RS485 communication interface.
f). Accuracy:±0.5%FS

2. Model specification:
SV-W Series 4digits Display Sensor Indicator RS485 Modbus RTU Protocol
3. Technical parameter:

Display Digits 4digits
Range -1999～9999
Signal input Input type TC/RTD universal input
Standard analog signal input(see below table)
Accuracy 0.5%FS
Resolution set freely
Sample rate 2.5times/second
Analog Output 1 loop
Type 4～20mA
Range & load Load resistance 600MΩ
Output accuracy 0.5%FS
Resolution 0.01mA 12digits
Auxiliary voltage output Voltage DC 24V
Capacity 60mA
Relay output Load 3A/250V AC
Electrical 100000times
Machenical 1000000times
Communiction Procotol RS485 Modbus-RTU
Baud rate 4800bps,9600bps
IP range 0～255
Delay No
Power supply Voltage AC/DC 100～240V 50/60Hz
Power consumption ≤5W
Protection level Panal IP54
Body No
Environment Working environment 0～50℃ ＜85%RH
Storage environment -20～60℃ ＜85%RH
Structure Vibration 10～55Hz XYZ 0.75mm
Screw torque 0.74n.m～0.9n.m
Safe Dielectric strength 2000VAC 50/60Hz
Insolation strength 100MΩ DC 500V
EMC ESD level 3
Pulse train anti-interference level 4 ±4000Vp-p
Lightning surge level 3,N-L ±2000V
Frequency drop level 3


SV-W Series 4digits Display Sensor Indicator RS485 Modbus RTU Protocol
4. Appearance and installation dimensions:
SV-W Series 4digits Display Sensor Indicator RS485 Modbus RTU Protocol
5. Connections:
SV-W Series 4digits Display Sensor Indicator RS485 Modbus RTU Protocol

6. Contact:

Sales: bassy shi

Cell phone: +86 13773069136

Email: bassy.shi@youjiazhineng.com
