DR9 serie 3 Phase Multifunction Power Recorder 3.5'' TFT Color LCD Display Modbus RTU Protocol
DR9 serie 3 Phase Multifunction Power Recorder 3.5'' TFT Color LCD Display Modbus RTU Protocol
Specifications
Brand Name :
Toky
Model Number :
DR9 series
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T
Delivery Time :
15~35days
Packaging Details :
Carton
Usage :
Industrial
Power supply voltage :
100～240Vac，50/60Hz
Power consumption :
≤5W
Accuracy :
0.5%
Working environment :
-25～55℃ 5～95%RH
Analog output :
4～20mA
Environmental standard :
IEC 60068-2
Safety standard :
IEC 61010-1，UL61010-1
Communication :
RS485
Baud rate :
4800～9600bps
Description

DR9 Series high accuracy 3phase multifunction power recorder, 3.5 inch TFT color LCD display, RS485, Modbus-RTU protocol

1. Features and advantages:
a). 3.5 inch 320*340 TFT color LCD display, freely switch between English and Chinese.
b). Measuring 3 phase true RMS voltage , ampere , frequency, active power ,reactive power , power factor,active KWH, reactive KWH, etc.
c). The voltage , ampere , active power , reactive power , power factor,active KWH,reactive KWH, frequency are real-time recorded and curve displayed, storaged as various table.
d). 8M flash memory inner side of the meter for data storage , support SD card and USB storage. RS485 communication port is available, support MODBUS-RTU protocol.
e). Widely used in low and medium voltage distribution cabinet, industrial automation, intelligent switch cabinet, building automation, energy management system, etc.

2. Model specification:

DR9 serie 3 Phase Multifunction Power Recorder 3.5'' TFT Color LCD Display Modbus RTU Protocol

3. Technical parameter:

Input signal Input voltage 3*100V/57.7V 3*380V/220V Power consumption per phase<1VA
Voltage impedance ≥300KΩ
Input current 3*5A(1A can be ordered) Power consumption per phase<0.4VA
Current impedance ＜20mΩ
Rated frequency 50Hz,60Hz
Accuracy Active power:level 1.0;
Reactive power:level 2;
Voltage & current:0.5%FS
Frequency:±0.1Hz
Measurement range Current:0.001In～1.2In
Voltage:0.01～1.1Un
Electrical parameter Relay capacity AC 250V 5A DC 24V 5A(Resistive load)
Analog output DC 4～20mA with load＜400Ω
Display device Industrail Grade TFT LCD display
Clock accuracy 0.5S/d
Communiction Communication port RS485 port Modbus RTU protocol or DLT645 protocol
Baud rate 4.8kbps,9.6kbps
EMC ESD level 3,Contact discharge±6000V, air discharge±8000V
Pulse group level 4 ±4000Vp-p
Frequency drop level 3
Lightning surge level 3,line to ground:±4000V;line to line ±2000V
Environment Working environment -25～55℃ 5～95%RH(no condensation)
Storage environment -40～70℃

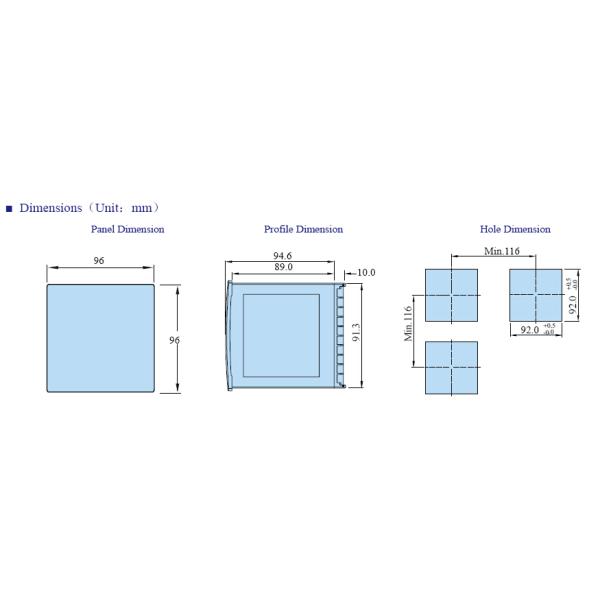

4. Appearance and installation dimensions:

DR9 serie 3 Phase Multifunction Power Recorder 3.5'' TFT Color LCD Display Modbus RTU Protocol

5. Connections:

DR9 serie 3 Phase Multifunction Power Recorder 3.5'' TFT Color LCD Display Modbus RTU Protocol
