Specifications
Brand Name :
Toky
Model Number :
DP4 series
Certification :
CE
Place of Origin :
China
MOQ :
5sets
Payment Terms :
T/T
Delivery Time :
15~35days
Packaging Details :
Carton
Usage :
Industrial
Power supply voltage :
100~240V AC/DC 50/60Hz
Power consumption :
≤5W
Accuracy :
0.5%FS
Working environment :
10～50℃ <85%RH
Relay output load :
3A/250V AC
Communication :
RS485
Communication baud :
4800bps,9600bps
Description

DP4 series digital panel voltmeter/ammeter with high-resolation and accuracy display function

1. Features and advantages of DP4 voltage meter/ampere meter:
a). 4 1/2 high-resolation and accuracy display functions.
b). High/low limit alarm of 2 group thumb switch.
c). 1 loop insulated analog 4～20mA output.
d). RS485 communication,Modbus RTU procotol.
e). Strict environment and EMC design required,more reliable.
f). suited to high accuracy measure,surveillance in industry.

2. Model specification:
High accuracy panel meter DP4 Voltage meter Ampere meter RS485

3. Technical parameter:

Input signal Input impedance Refer to measurement range table
Load 1.2times rated range
Measurement accuracy DC 0.2%FS AC 0.3%FS
Resolution 4 1/2 digits display
Refresh 2.5～10times/second
Analog Output 4～20mA
Load 600Ω max
Output accuracy 0.5%FS
Resolution 0.01mA 12digits
Relay output Load 3A/250V AC
Electrical lifetime 100000times
Mechanical lifetime 1000000times
Communication Communication protocol RS485 Modbus RTU
Baud rate 4800bps,9600bps
Power supply Voltage 100～240V AC/DC 50/60Hz
Power consumption ≤5W
Protection level Panel IP54
Body N
Environment Working environment 0～50℃ <85%RH
Storage environment -20～60℃ <85%RH
Structure Vibration 10～55Hz XYZ direction 0.75mm
Screw torque 0.74n.m～0.0n.m
Safe Dielectric strength 2000VAC 50/60Hz
Insolation strength 100MΩ DC 500V
EMC ESD level 3
Pulse train anti-interference level 4 ±4000Vp-p
Frequency drop level 3
Lightning surge level 3,N-L±2000V


High accuracy panel meter DP4 Voltage meter Ampere meter RS485

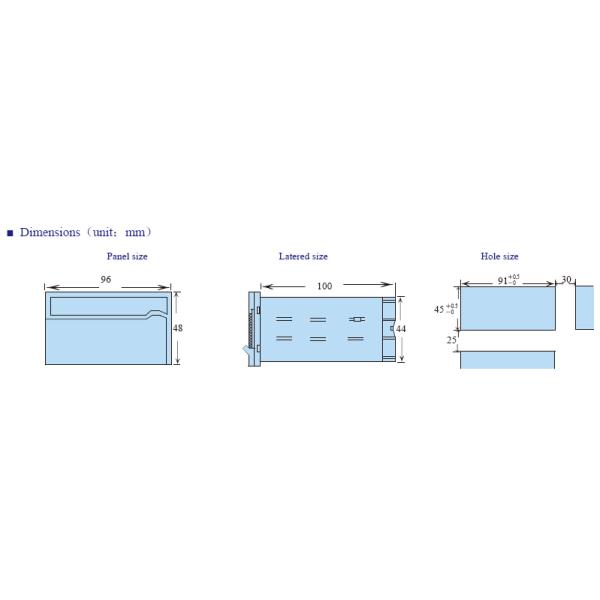

4. Appearance and installation dimensions:
High accuracy panel meter DP4 Voltage meter Ampere meter RS485

5. Connections:
High accuracy panel meter DP4 Voltage meter Ampere meter RS485

6. Contact:

Sales: bassy shi

Cell phone: +86 13773069136

Email: bassy.shi@youjiazhineng.com
