Specifications
Place of Origin :
China
Brand Name :
HENG HAO
Certification :
UL,CQC,VDE,ROHS
Model Number :
KSD303
Price :
USD0.5 ~USD1.0 per piece
Packaging Details :
1000pcs per carton
Delivery Time :
7 days
Payment Terms :
TT, CASH.LC.WEST UNION
Supply Ability :
1000000000 PCS PER MONTH
MOQ :
1000PCS
voltage and current :
250V 25A 40A
Contact type :
normally closed
switch type :
auto reset or manual reset
Temperature range :
50-200 degree
Description

ksd303 bipolar thermal switch, ksd303 bipolar thermal cutout

KSD302 series bipolar thermostat is a bimetal thermostat temperature component, electric work; sheet metal in a free state, the contact is closed / disconnected state when the temperature reaches operating temperature, the bimetallic thermal stresses generated within the tables and rapid movements, open/closed contacts OFF/ON circuit, and thus play areole in temperature control. When the electrical cooling to reset temperature, the contacts automatically closed / opens, to restore normal operation.

Bipolar Thermostat technology specification:

Rating Voltage: 250V

Rating Current: 15A (resistance load), Max. Current: 20A

Action Temperature: 50~200 degree

temperature accuracy: +- 2 +- 3 +- 5 +- 10 ℃

Life-span: 10,000 cycles

Contact Resistance:

Insulation Intensity: Not to be cause electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover

Insulation resistance:

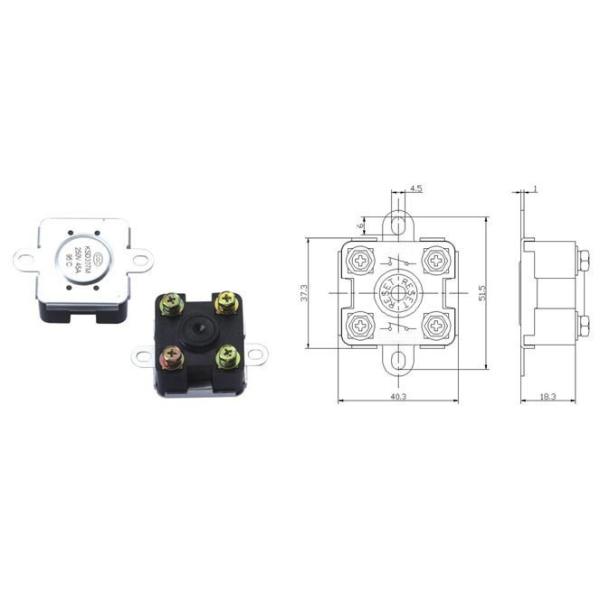

The chart of structure and dimension

KSD303 Model bipolarThermal Switch , 250V Rated 25A or 40A Bipolar Thermal Cut OutKSD303 Model bipolarThermal Switch , 250V Rated 25A or 40A Bipolar Thermal Cut Out
