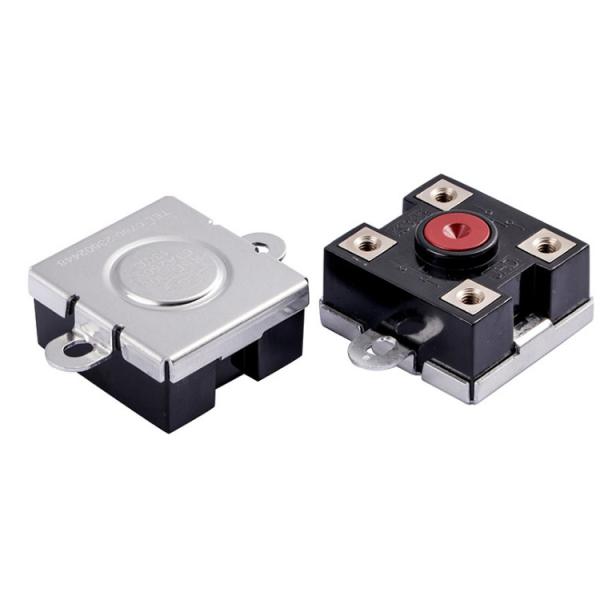

Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
Specifications
Place of Origin :
Guangdong, China
Model Number :
KSD303
Packaging Details :
200pcs box, 2000pcs per carton
MOQ :
1000 pieces
Price :
$1.00/pieces 1000-4999 pieces
Type :
Switch Snap Action
Supplier Type :
Original manufacturer
Cross Reference :
KSD308
Media Available :
datasheet, Photo, EDA/CAD Models
Voltage Rating - AC :
250V
Voltage Rating - DC :
24V
Voltage :
6 ~ 250V
Contact type :
Normally closed
Recovery action temperature difference :
10 to 25 degrees, or according to client's request
Life cycle :
≥100000 times
MOQ :
500PCS
Payment method :
TT or negotiate payment term
Delivery time :
7 to 15 working days
Model :
KSD301
Raw material :
Sliver, copper, plastic, metal, aluminum
Electrical Rating :
AC250V 15A (resistance load), Max. Current: 20A
Action Temperature range :
50~200 degree
Description

Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery Equipment

Place of origin Made in China
Raw material sliver, copper, plastic, metal, aluminum
model KSD303
Electrical Rating AC250V 15A (resistance load), Max. Current: 20A
Action Temperature range 50~200 degree
Recovery and action temperature difference 10 to 25 degrees or according to client's request.
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance ≥100MΩ (DC500V Normal State)
Dielectric Strength AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed
Delivery time 7 to 15 working days
Scope of application KSD303 is used for instant electric water heater, electric heating equipment, electric welding machine, steam heater, high power machinery and equipment and electric products etc

KSD303 series bipolar thermostat’s Principle and structure

KSD303 is a bimetal thermostat temperature component, electric work; sheet metal in a free state, the contact is closed / disconnected state when the temperature reaches operating temperature, the bimetallic thermal stresses generated within the tables and rapid movements, open/closed contacts OFF/ON circuit, and thus play areole in temperature control. When the electrical cooling to reset temperature, the contacts automatically closed / opens, to restore normal operation.

KSD303 Bipolar Thermostat technology specification:

Rating Voltage: 250V

Rating Current: 15A (resistance load), Max. Current: 20A

Action Temperature: 50~200 degree

temperature accuracy: ± 2 ± 3 ± 5 ± 10 ℃

Life-span: 10,000 cycles

Contact Resistance:

Insulation Intensity: Not to be cause electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover

Insulation resistance:

The chart of structure and dimension

KSD303 bipolar thermostat’s application

KSD303 is used for instant electric water heater, electric heating equipment, electric welding machine, steam heater, high power machinery and equipment and electric products etc

KSD303 bipolar thermostat’s drawing

Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery
