Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
Specifications
Brand Name :
HENG HAO
Model Number :
3950 3977
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
USD0.165 to USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
10000000pcs per month
Delivery Time :
7 working days
Packaging Details :
5000pcs per carton
NTC :
10K 15K 50K 100K
R25(nominal resistance value) :
500Ω~5MΩ
Specification Name Scope Detection Condition R25(nominal resistance value) 500Ω~5MΩ Constant tempera :
±1,±2, ±3, ±5, ±10
Working temperature :
40℃~+120℃
FEATURES :
High sensitivity,quick reaction
APPLICABLE SCOPE :
induction cookers, irons, electric barrettes, water heater
Description

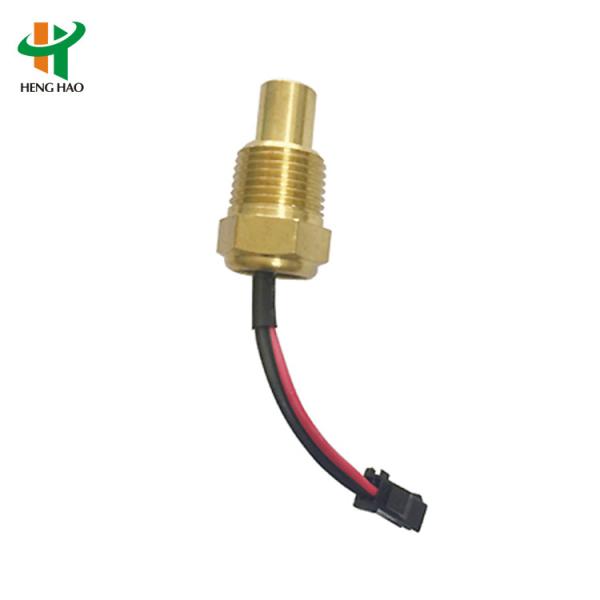

NTC temperature sensor hex thread water proof IP65 incar thermistor 10K 50K 100K

FEATURES

  1. Connect the various types of wire with high-precision and high-reliable NTC thermistors,and use insulating, hot-conduction and waterproof to seal to the necessary shape for installing and measuring temperature at a long distance
  2. With brand-new process, stable performance, available for long term and steady work (offset rate of annual resistance value)
  3. High precision of resistance and B value, good consistency, allowable exchange(resistance value and B value can specifically reach ±1%)
  4. High sensitivity,quick reaction
  5. Adopt double-layer sealing process, and possess good insulationg sealing and anti-mechanical-collision and anti-bending capability acailable for sealing accoriding to the used installation conditions,convenient for users to install
  6. Available for making high-dissipatong products, and test current can be far larger than sensors of traditional structure, which makes the application circuit simplofied.

PURPOSE

  1. Temperature measurement of various complete sets of products
  2. Temperature control
  3. Temperature-adjustment circuit and long distance measurement

APPLICABLE SCOPE

Applicable for temperature measurement and control of induction cookers, irons, electric barrettes, water heater, drinking machine, warm air blower, dishwasher, disinfecting cabinet, washing machine, drying machine, medium and low temperature drying box, constant temperature box

MAIN TECHNICAL SPECIFICATIONS

Specification Name Scope Detection Condition
R25(nominal resistance value) 500Ω~5MΩ Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 (material coefficient)(thermal-sensitivity index) 2500~5000K

Constant temperature 25℃±0.05℃

Constant temperature 50℃±0.05℃
B25/50 Value permissible variance(%) ±1,±2

Constant temperature 25℃±0.05℃

Constant temperature 50℃±0.05℃
∫(dissipation coefficient) ≥0.8mw/℃ Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40℃~+120℃
Pn (rated power) 50mw within working temperature


Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K

Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K

Hex Thread NTC Temperature Sensor Waterproof IP65 10K 50K 100K
