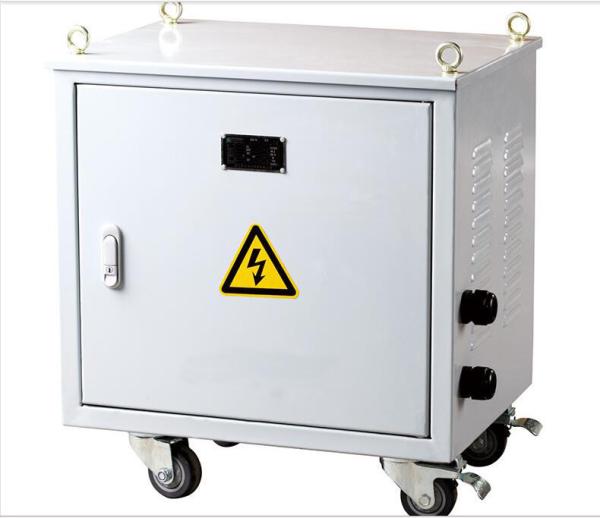

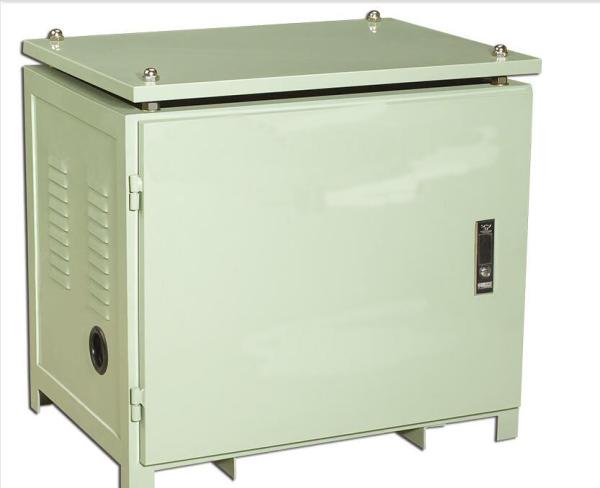

Hot sales good price high quality SG,SBK series electric power transformer
Hot sales good price high quality SG,SBK series electric power transformer
Hot sales good price high quality SG,SBK series electric power transformer
Hot sales good price high quality SG,SBK series electric power transformer
Hot sales good price high quality SG,SBK series electric power transformer
Hot sales good price high quality SG,SBK series electric power transformer
Specifications
Brand Name :
KSI
Model Number :
SG,SBK
Certification :
CE
Place of Origin :
Chian(Mainland)
MOQ :
1
Price :
USD 172-600 / SET
Supply Ability :
100000 SETS/MONTH
Delivery Time :
15Days
Packaging Details :
Standard package or according to customer's requirements
Usage :
Power
Phase :
3
Coil Structure :
Toroidal
Coil Number :
Autotransformer
Frequency :
AC50Hz or 60Hz
Rated voltage AC :
380V and below
Rated voltage DC :
220/380V
Using :
controlling power supply
Function :
local lighting and indicting power supply
Altitude :
≤2000
Installation class :
III
Pollution grade :
3
Temperature :
-5~40℃
Description

Application

SG series single-phase and three-phase dry type transformer adopts high quality material and advanced technology, it has advantages of damp-proof and convenient, like underground railway, high building, airport, station, wharf, enterprise, tunnel, etc.

It is mainly used in power supply occasions of AC50-60Hz and voltage, connection group and capacity of trapped winding can be designed and produced according to users' requirements.

Model and Meaning

Working conditions

1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;

2.Altitude for installing place should not exceed 2000m;

3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.

Main Technical Parameter

Input Voltage Rated voltage ±10%
Output voltage Rated voltage 2-5%
Efficiency >95%(power grade 50 KVA above)
Frequency 50-60Hz
Waveform distortion Non additional waveform distortion
Function Current, input voltage and output voltage
indicators and input switch are available at
request
Long-term unattended operation is allowable
Insulation resistance Normally more than 10M Ω
Electricity-resistance strength single: Power frequency sinusoidal voltage
1500V for 1min.without breakdown or flashover
Three: Power frequency sinusoidal voltage 2000v
for 1min. Without breakdown or flashover

Type Rated voltage V Open-type
Outline dimension Installation dimension Hole
Input Output B max D max E max A C K×J
SG-0.1 690 660 400 380 660 380 220 127 125 100 125 90 55 6×12
SG-0.3 155 110 155 110 70
SG-0.5 185 140 185 130 85 7×13
SG-0.75 185 150 185 130 95
SG-1 185 160 185 180 105
SG-1.5 235 170 225 200 110
SG-2 270 190 255 200 115 10×18
SG-2.5 270 190 255 200 122
SG-3 270 200 255 220 122
SG-4 305 210 305 220 135
SG-5 305 220 305 220 135
SG-6 365 220 350 260 138
SG-8 365 240 350 260 148
SG-10 425 260 400 320 150 12×18
SG-15 425 280 400 320 163
SG-20 485 300 460 360 163 14×22
SG-25 485 320 460 360 173
SG-30 485 350 460 360 183
SG-40 600 350 550 400 200
SG-50 750 360 560 520 200 φ13
SG-60 780 380 580 520 200
