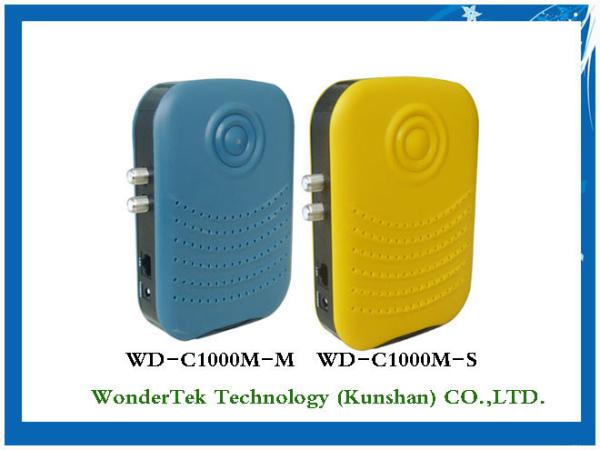

Brief introduction
This low frequency coaxial line network bridge was developed based on the Coaxial cable broadband access technology, one of the high-speed Quasi gigabit network products which were developed under the latest G.hn international standard issued by ITU-T. Transfer the Ethernet signals through coaxial cable of cable TV, could upgrade the original coaxial cable network into a carrier-class broadband access network which can be operated and managed.
　Coaxial cable bridge modulate the standard Ethernet signals output from ONU into the RF signals which could be transferred in coaxial cable, and the adoption of OFDM technology makes it can transfer the data stably in a complicated networking environment.
　Local side product provides a join-in bandwidth at the rate of 900Mbps, using 7.5-100MHz low-frequency channel, effectively avoid the conflict between the existing CATV system frequency occupation and the product, reduce the interruption of each other. Support CATA network of tree and star structure, it has the features of long distance transmission, good network adaption and high bandwidth etc..

Specification

Topology

Features
1. Not need to lay the new user cable, transfer data through the existing coaxial cable directly.
2. Use 7.5-100MHz low-frequency channel, can be co-exist with applications of analogue television, DVB digital TV, IPQAM etc.
3. Modulate with OFDM, multi-carrier technology and self-adaption information channel, guarantee the stability of data transmission under the noisy environment.
4. Support Remote configuration terminals, including rate-limiting, QoS,802.1q Vlan support.
5. Support 4th priority of dispatching based on 802.1p,DSCP,TOS. IGMP multicast.
6. Setting and managing IP and Vlan are permitted.
