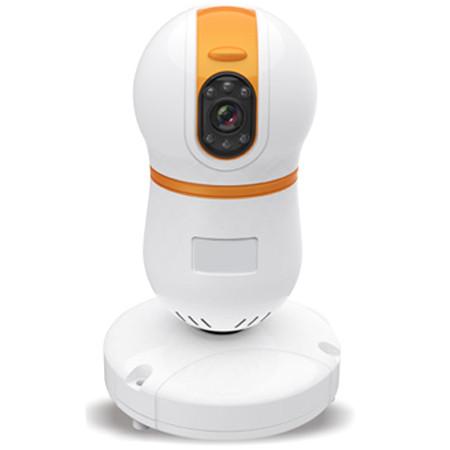

Indoor use HD video monitoring WD-PLC3002 powerline IP camera
Indoor use HD video monitoring WD-PLC3002 powerline IP camera
Specifications
Brand Name :
WonderTek
Model Number :
WD-PLC3002
Certification :
FCC、CE、ROHS
Place of Origin :
China
MOQ :
10 sets
Supply Ability :
500 sets per month
Delivery Time :
5-48 days after payment
Packaging Details :
Neutral white box or customzised box
Infrared lamp :
8M far away from infrared lamp
Modulation tec. :
OFDM
Video compress format  :
H.264 Main Profile@Level 3.0
Maximum image rate :
1.3MP, 960P
Maximum video rate :
1280X960 25 frame
Description

Brief introduction
WD-PLC3002 family powerline IP camera which integrated powerline communication and streaming media technologies especially designed for Civilian users’HD network monitoring solution, internal PLC communication module meets the demand of Home Plug AV, it turns 220V power line into a intelligent power grid transmission structure which can transfer the HD digital video through power line.
Adopt E27 bulb plug and socket design, can be installed in the existing lighting fixtures, ceilings, walls even can be placed on the table directly, no drilling, scaffold and wiring, It is integrated into the decorations naturally by the elegant appearance design and can be moved freely. The product is easy to install, no matter where and when, you just need to enter the account and password at the first time, then you will access to the camera successfully. Matching the monitoring software of our company, you could watching, showing and recording on the computer and It also supports real time monitoring through Web browser.

Topological structures of different applications


1,Local monitoring (office/family)

2,Remote monitoring

3,Direct connect with PLC video receiver

Family application display

Specification

Specification
Item WD-PLC3002
Image sensor 1/2.5', 1.3 Megapixel CMOS censor, with IR cut,filter,
960P , support CS port
Infrared lamp 8M far away from infrared lamp
Modulation tec. OFDM
Video compress format H.264 Main Profile@Level 3.0
Maximum image rate 1.3MP, 960P
Maximum video rate 1280X960 25 frame
Video rate 0.1-6Mpbs (adjustable)
Protocol standard HomePlugAV
Working System support Windows,iPhone,Android,WinCE,
Linux,Mac iPad ,IE and etc for simultaneous monitoring,support P2P client ,RTSP media,HTTP Live apple live
Simultaneous output,support remote configuration and management,support the 64 bits dynamic encryption transmission to
H.264 video streaming
Network Protocol TCP/IP RTSP HTTP FTP TCP DHCP UDP
Security Password permission settings
Power source AC 100V-240V 60/50Hz
Power consumption ＜5W
PLUG EU, US, UK,
Using environment Working temperature -10℃-50℃
Storage temperature: -20℃-70℃
working humidity 10%-85% non-condensed state
Storage humidity 5%-90% non-condensed state
within 300meters distance between camera and
powerline video receiver
within the same electric meter and phase line for
power supply of camera
and powerline video receiver.
Weight 0.45kg
Certification FCC,CE,ROHS
Content package Powerline video receiver
User construction
Mounting bracket
Powerline IP camera
warranty card

Features
- Built-in PLC for cable free instant installation
-Support NVR
- Supports iPhone / Smart Phone remote video monitoring
- Infrared for Day and Night monitoring
- Special lamp connector design for easy installation
- High definition
