DIN rail style industrial use PLC Ethernet adapter
DIN rail style industrial use PLC Ethernet adapter
Specifications
Brand Name :
WonderTek
Model Number :
WD-1000M-GT/GS/GD
Certification :
FCC、CE class B,RoHS
Place of Origin :
China
MOQ :
20 pcs
Delivery Time :
5-48days
Packaging Details :
customized box or white neutral box
Description

DIN rail style industrial use PLC Ethernet adapter

DIN rail style industrial use PLC Ethernet adapter

Brief introduction

DIN rail style PLC Ethernet adapter uses the existing power lines to transfer the network signals stably and it’s simple installation style make it can be applied in many industrial environments just as parking hall, harbor, railway, airport, metro, train, industrial automation production line etc.. Really a great weapon for industry 4.0!

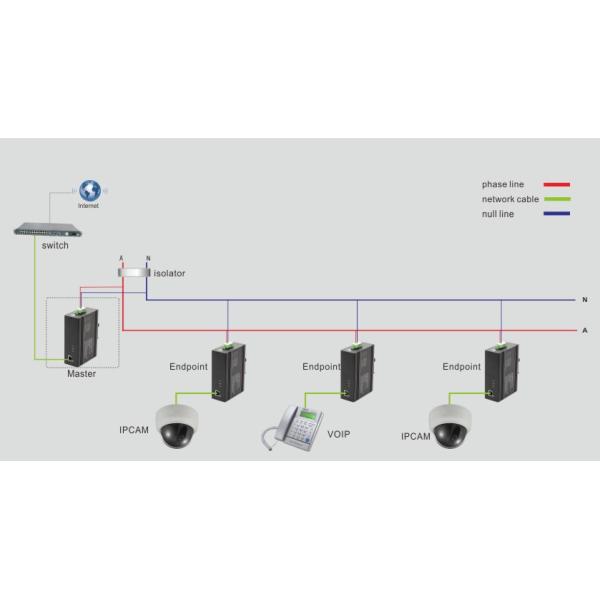

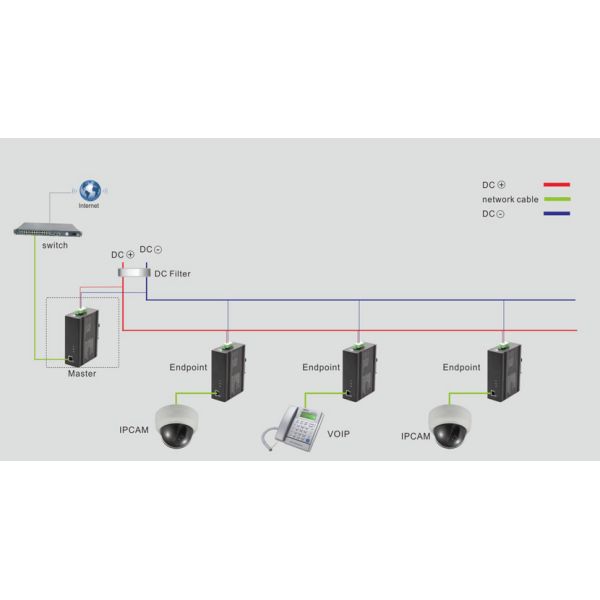

Topology

DIN rail style industrial use PLC Ethernet adapter

DIN rail style industrial use PLC Ethernet adapter

DIN rail style industrial use PLC Ethernet adapter

Specification
Model WD-1000M-GT WD-1000M-GS WD-1000M-GD
Interface
1*LAN 10/100/1000Base-TX self adaption RJ45,1*AC power interface 1*LAN 10/100/1000Base-TX self adaption RJ45,1*DC power interface
LED display lights power
Link
Ethernet
Transfer band 25,50 and 100MHz and MIMO (based on G.9963)
Protocol IEEE802.3,IEEE802.3x, IEEE802.3u ITU-T G.9960/ITU-T G.9961
Security 128-DES
Transfer rate(PHY) 800Mbps
TCP/IP 400Mbps
Modulation OFDM
Management Remote Firmware update,support TR-069(optional)
802.1D Ethernet Bridge
802.1Q VLAN
Quality of Service(QoS)
IGMP(IPv4)Snooping&MLD(IPv6)Snooping
Working voltage AC 90V-600V 60/50Hz DC12V-300V
Operating environment Working temperature:-20℃-50℃
Working humidity:0-90%
Storage temperature:-40℃-70℃
Size 67*160*123 (mm)
Level of protection IP40
Weight 0.35kg
Operating life 40,000 hours
Transmission distance 500 meters
Group(Max) 1Master 7Slaves
Certification FCC,CE class B,RoHS

Feature

Plug and play, no setting.

Wide working voltage range, can transfer the network data in single phase, three phases and DC model with high rate.

DIN rail installation design, it’s easy to install and maintain.

Industrial design, vibration proof& damp proof& dust proof.
