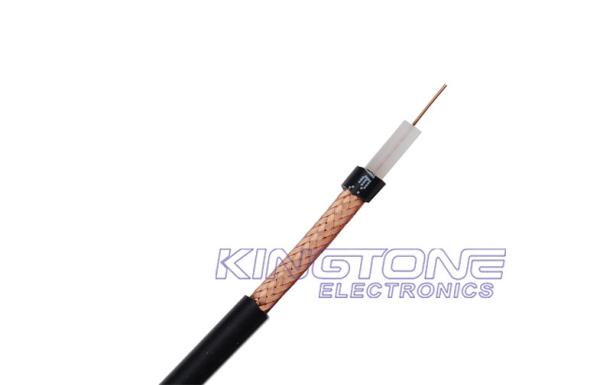

75 Ohm Coaxial Cable RG59 BC Condcuor Solid PE 95% CCA Braiding RoHS Standard
75 Ohm Coaxial Cable RG59 BC Condcuor Solid PE 95% CCA Braiding RoHS Standard
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OR OEM
Certification :
ISO, UL, CE, RoHS
Model Number :
RG59 Coaxial Cable
MOQ :
30 KM
Packaging Details :
500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time :
Normally 15 days
Payment Terms :
T/T,L/C
Supply Ability :
50*20’GP/Month
Description
Conductor: Bare Copper Insulation: Solid PE
Shield: Bare Copper Braiding Jacket: PVC
Color: Black, White Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton

75 Ohm RG59 Coaxial Cable BC Condcuor Solid PE 95% CCA Braiding RoHS Standard

Quick Detail:

  • RG59 Coaxial Cable
  • 23 AWG BC Conductor
  • 95% CCA Braiding
  • Solid PE Insulation
  • 75 Ohms CCTV Cable
  • PVC, RoHS Compliant
  • 500FT 1000FT Spool or Pull Box
  • MOQ: 30 KM

Description:

KT0707 RG59 Coaxial Cable 23 AWG Bare Copper Solid PE 95% CCA Braiding PVC Jacket

RG-59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect

for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in

practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

KINGTONE’S price of RG59/U is not high although our quality is really high.

Applications:

Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera

Specifications:

KT0707 RG59 Coaxial Cable 23 AWG Bare Copper Solid PE 95% CCA Braiding PVC Jacket
Construction Parameters:
Inner Conductor 0.58mm/23AWG Bare Copper
Dielectric 3.66±0.05mm Solid PE
Shield Nom. 4.10mm Braiding
Strand 0.12mm Copper Clad Aluminum
% Coverage 95 nom.
Jacket 6.00±0.1mm PVC (Color by your choise)
Application For Use in Intermediate CCTV Run Lengths
Limited Length Typical run length up to 250M
Electrical Characteristics:
Capacitance 67±2 pF/m
Impedance 75±3 Ω
Inner Conductor Resistance 65.26 Ohms/KM at 20℃
Return loss between 5 and 1000MHz > 22dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3
Operating Temp Range (PVC) -20 ℃ to 65℃
RoHS YES
Attenuation(20℃):
Frequency
(MHZ)		 Max Attenuation
(dB/100m)
5 2.70
50 9.00
100 12.87
200 18.54
550 31.98
750 37.81
865 41.15
1000 44.65
Order Informations:
Marking KINGTONE KT0707 RG59 B/U BC SPE 95% CCA COAXIAL CABLE XXXX
FT/M
Package 100m/Spool,300m/Wooden Spool,Pallet
Delivery time Normally 20-25 days after received the deposit.
More informations please contact with us.
Online Service:
Skype kingtone3
ICQ 246632889

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
