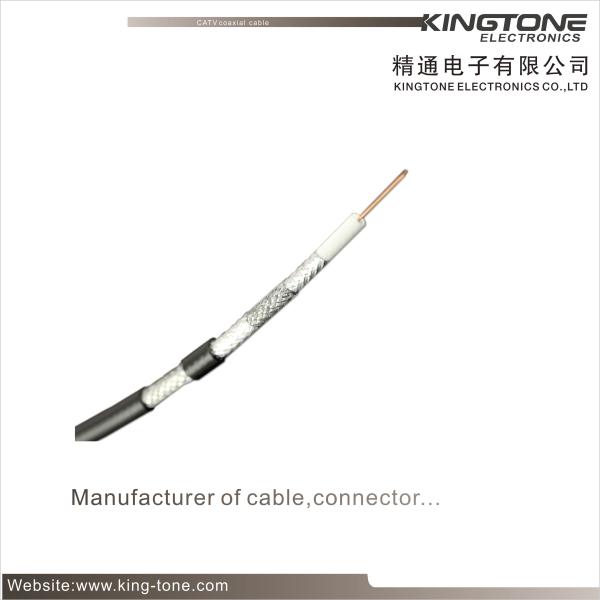

RG59 ST Coaxial Cable 0.64mm BC Solid PE 95% CCA Braid PVC Jacket
RG59 ST Coaxial Cable 0.64mm BC Solid PE 95% CCA Braid PVC Jacket
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OR OEM
Certification :
ISO, UL, CE, RoHS
Model Number :
CATV Coaxial Cable
MOQ :
30 KM
Packaging Details :
100M, 305M, Wooden Spool, Carton
Delivery Time :
Normally 15 days
Payment Terms :
T/T,L/C
Supply Ability :
50*20’GP/Month
Description
Conductor: Bare Copper Insulation: Solid PE
Shield: CCA Braiding Jacket: PVC
Color: Black Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton

RG59 ST Coaxial Cable 0.64mm BC Solid PE 95% CCA Braid PVC Jacket​

Quick Detail:

  • RG11 CATV Coaxial Cable
  • 14 AWG CCS Conductor
  • 60% AL Braiding
  • Foamed PE Insulation
  • Jelly PE
  • 75 Ohms
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 100M, 305M, Wooden Spool, Carton

Description:

KT2042 RG11 CATV COAXIAL CABLE 14 AWG CCS 60% Braid Jelly PE Jacket

is a specific type of CATV coaxial cable , RG11(Produced by KINGTONE) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic

impedance of 75 ohms. KINGTONE using best raw material and best worker to produce

RG11 to meet high performance in practical application. RG11 is packed in 500FT/1000FT

plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, KINGTONE’S price of RG11 is not high although

our quality is really high.

Applications:

Suitable for RF signal transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital video

■ Antennas

KT2042 RG11 Jelly PE CATV Coaxial Cable 14 AWG CCS 60% Braid PE Jacket 1000ft
Construction Parameters:
Inner Conductor 0.064"/1.63mm/14AWG Copper Clad Steel
Dielectric 0.280"/7.11mm Foamed PE
Shield 1 0.287"/7.29mm Bonded Aluminum Polyproylene
Shield 2 60% coverage Aluminum braid wire
Jacket 0.400"±0.006"/10.16±0.15mm PE(Jelly Flooded For Underground)
Jacket Thickness 0.042"/1.07mm
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 87 Ω/km < 26.53 Ω/1000ft
Capacitance 52 ±3 pF/m 15.85 ±1 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.38 1.25
55 0.96 3.15
83 1.18 3.87
187 1.75 5.74
211 1.90 6.23
250 2.05 6.72
300 2.25 7.38
350 2.42 7.94
400 2.60 8.53
450 2.75 9.02
500 2.90 9.51
550 3.04 9.97
600 3.18 10.43
750 3.65 11.97
865 3.98 13.05
1000 4.35 14.27
Mechanical and Environmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range (PVC) -20 ℃ to 60 ℃
Cable diamensions 0.40''±0.006''/10.21±0.15 mm PVC
Order Informations:
Marking

KINGTONE KT2042 RG11 Jelly 60% Bonded PE

CATV COAXIAL CABLE ×××M/FT
Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
Delivery time Normally 25 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
