75 Ohm Dual RG6 Coaxial Cable with Messenger CE Standard for CCTV CATV Transmission
75 Ohm Dual RG6 Coaxial Cable with Messenger CE Standard for CCTV CATV Transmission
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OR OEM
Certification :
ISO, UL, CE, RoHS
Model Number :
CATV Coaxial Cable
MOQ :
30 KM
Packaging Details :
100M, 305M, Wooden Spool, Carton
Delivery Time :
Normally 15 days
Payment Terms :
T/T,L/C
Supply Ability :
50*20’GP/Month
Description
Conductor: CCS Dielectric: Foamed PE
Shield 1: AL-Foil Shield 2: Aluminum Braiding
Jacket: PVC Color: Black Or White
Package: 100M, 305M, Wooden Spool, Carton

75 Ohm Dual RG6 Coaxial Cable with Messenger CE Standard for CATV Transmission

Quick Detail:

  • Dual RG6 CATV Coaxial Cable
  • 18 AWG CCS Conductor
  • 60% AL Braiding
  • Foamed PE Insulation
  • 75 Ohms
  • Bonded AL-Foil
  • Zinned Steel Messenger
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 100M, 305M, Wooden Spool, Pallet

Description:

KT0685 RG6 Dual CATV COAXIAL CABLE 18AWG CCS 60% B.AL Braiding PVC Messenger

is a specific type of CATV coaxial cable , RG 6(Produced by KINGTONE) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG 6 has a characteristic

impedance of 75 ohms. KINGTONE using best raw material and best worker to produce

RG 6 to meet high performance in practical application. RG 6 is packed in 300M/1000FT/

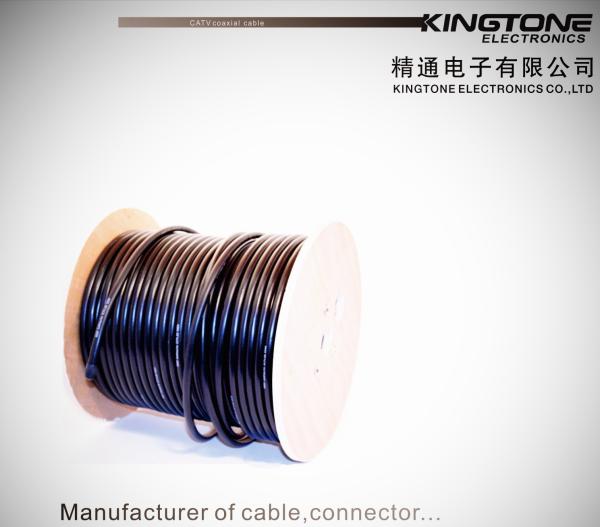

1000M wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, KINGTONE’S price of RG 6 is not high although

our quality is really high.

Applications:

Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital Video

■ Antennas

KT0685 Dual RG6 CATV COAXIAL CABLE 18AWG CCS 60% Bonded AL Braiding PVC Messenger

Construction Parameters:
Inner Conductor 0.040"/1.02mm/18AWG Copper Clad Steel
Dielectric 0.180"/4.57mm Foamed PE Gas Expanded Polyethylene
Shield 1 0.187"/4.75mm Bonded Aluminum Polyproylene
Shield 2 60% coverage Aluminum braid wire
Jacket 0.268"±0.006"/6.81±0.15mm PVC
Jacket Thickness 0.030"/0.76mm
Messenger 0.072"/1.83mm
Minimun Breaking Strength 365lbs./166kg
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 87 Ω/km ; < 26.6Ω/1000ft
Capacitance 52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Attenuation(20℃):
Frequency
(MHZ) 		Max Attenuation
(dB/100ft)		 Max Attenuation
(dB/100m)
5 0.58 1.90
55 1.60 5.25
83 1.95 6.40
187 2.85 9.35
211 3.05 10.00
250 3.30 10.82
300 3.55 11.64
350 3.85 12.63
400 4.15 13.61
450 4.40 14.43
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
865 6.10 20.01
1000 6.55 21.49
Mechanical and Envrionmental Properties :
Cable bend radius 10 times the cable diameter
Operating Temp Range (PVC) -20 ℃ to 60℃
Cable diamensions 0.268"±0.006"/6.81±0.15mm PVC
Order Informations:
Marking

KINGTONE KT0685 RG6 Dual 60% Bonded PVC Messenger CATV COAXIAL

CABLE ×××M/FT
Package 500FT/Pull Box, 1000FT/Wooden Spool/Pallet
Delivery time Normally 25 days after received the deposit.
More informations Please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
