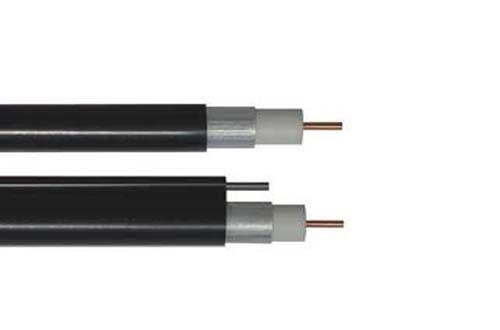

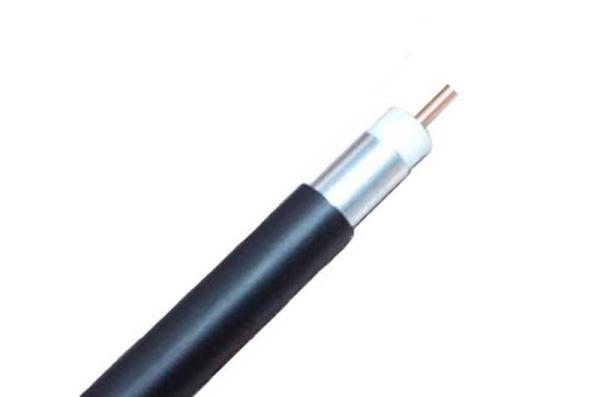

20.83mm Black PE Jacket Digital Coax Cable for Broadban Network
20.83mm Black PE Jacket Digital Coax Cable for Broadban Network
20.83mm Black PE Jacket Digital Coax Cable for Broadban Network
20.83mm Black PE Jacket Digital Coax Cable for Broadban Network
20.83mm Black PE Jacket Digital Coax Cable for Broadban Network
20.83mm Black PE Jacket Digital Coax Cable for Broadban Network
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OR OEM
Certification :
ISO, UL, CE, RoHS
Model Number :
Signal Coaxial Cable Low Loss 100
MOQ :
5 KM
Packaging Details :
500M, 1000M, Wooden Drum, Pallet
Delivery Time :
Normally 15 days
Payment Terms :
T/T,L/C
Supply Ability :
50*20’GP/Month
Description
Inner Conductor: CCA Dielectric: Polyethylene (Gas Injected)
Outer Conductor: Seamless Aluminum Tube Jacket: PE
Messenger: Steel Color: Black
Package: 500M, 1000M, Wooden Drum, Pallet

20.83mm Black PE Jacket Digital Coax Cable for Broadban Network​

Quick Detail:

  • PⅢ 750 JCAM Trunk Cable
  • 0.167 Inches /4.24mm CCA
  • 0.682 Inches /17.32mm FPE
  • 0.750 Inches /19.05mm Aluminum Tube
  • 0.820 Inches /20.83mm PE
  • 500M, 1000M, Wooden Drum, Pallet
  • MOQ: 5KM

Description:

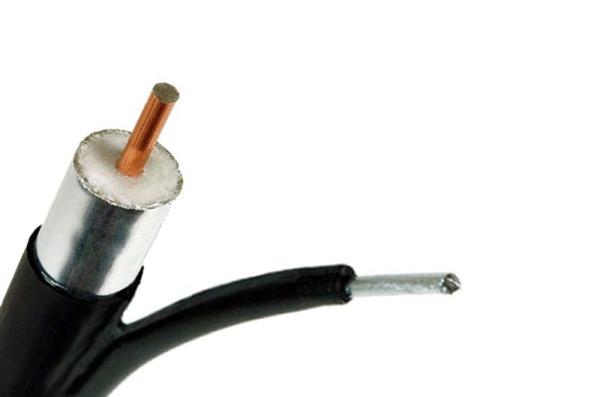

KT0208 PⅢ 750 JCAM Trunk Cable, 4.24mm CCA Conductor, 20.83mm PE Jacket, Messenger

has the highest reliability and flexibility of any Trunk and Distribution coaxial cable, low RF attenuation and an unprecedented 10 year warranty.All QR ans PS cable products offer tough polyethylene jackets and a standardized, environmentally sealed connector interface engineered for reliability and craft friendliness.
QR and PS cable offers lower attenuation than larger traditional products, with unmatched flexibility,
reliability and cost effectiveness. QR and PS cable is optimized for use in broadband feeder plants. It can also be used for very low attenuation antenna/headend connections.
Standard QR and PS cable Construction is comprised of:
Aluminum Strip – formed and continuously RF welded around a high compression microcellular foam dielectric core, minimizing RF egress and ingress and the rigidity common in traditional coaxial products.
Shield – fully bonded to the dielectric core, as is the copper clad aluminum center conductor.
Polyethylene Jacket – applied standard, which enhances cable reliability and allows QR and PS cable's unique connector technology to form an environmental seal.
Applications:

Trunk coaxial cables are connected to the optical node and form a coaxial backbone to which smaller distribution cables connect.Trunk cables also carry AC power which is added to the cable line at usually either 60V or 90V by a power supply and a power inserter.

KT0208 PⅢ 750 JCAM Trunk Cable,4.24mm CCA Conductor, 20.83mm PE Jacket,Messenger
Construction Parameters:
Inner Conductor 0.167Inches /4.24mm Copper Clad Aluminum
Dielectric 0.682Inches /17.32mm Foamed PE
First Shield 0.750Inches /19.05mm Welding Smooth Aluminum Tube
Shield Thickness 0.034Inches /0.86mm
Jacket 0.820Inches /20.83mm PE/ Flame Retardant PE
Jacket Thickness 0.035Inches /0.89mm
Messenger 0.188Inches /4.78mm or 0.250Inches /6.35mm Stranded Steel
Electrical Characteristics:
Capacitance(pF/m) 50 ± 3
Impedance(ohm) 75 ± 2
Velocity of Propagation (%) 87
Inner Conductor DC Resistance(Ω/km) 1.87
Outer Conductor DC Resistance(Ω/km) 0.62
Loop DC Resistance(Ω/km) 2.49
Mechanical Characteristics:
Min.Bend Radius(mm) 152
Max.Pulling Tension(kgf) 306
Max.Breaking Strength of Messenger(.188)(kgf) 1769
Max.Breaking Strength of Messenger(.250)(kgf) 3016
Attenuation(20℃):
Frequency (MHZ) Nominal (dB/100m) Max Attenuation (dB/100m)
5.00 0.33 0.36
55.00 1.15 1.21
83.00 1.38 1.51
211.00 2.33 2.43
250.00 2.53 2.66
300.00 2.79 2.92
350.00 2.99 3.18
400.00 3.25 3.44
450.00 3.48 3.67
500.00 3.64 3.87
550.00 3.90 4.07
600.00 4.04 4.30
750.00 4.53 4.86
865.00 4.89 5.28
1000.00 5.32 5.71
Order Informations:
Marking KINGTONE PS 750 XXX M (or Per customer's request)
Package 1000m/Wooden Spool (or Per customer's request)
Delivery time Normally 15 days after received the deposit.
More informations please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
