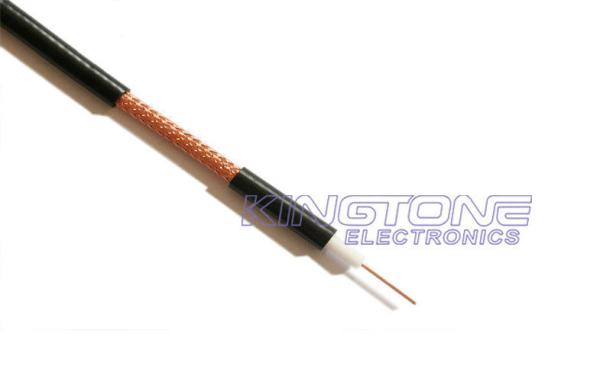

20 AWG BC Foam PE 95% BC Braid , RG59 CCTV Coaxial Cable for VDT Display
20 AWG BC Foam PE 95% BC Braid , RG59 CCTV Coaxial Cable for VDT Display
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OEM
Certification :
CE,RoHS, VDE,UL,CUL,LPCB
Model Number :
RG59/U
MOQ :
3OKM
Packaging Details :
500FT/1000FT Plastic/Wooden Spool
Delivery Time :
Normally 15 days
Payment Terms :
T/T,L/C
Supply Ability :
50*20’GP/Month
Description
Detailed Product Description
Conductor: Bare Copper Insulation: Foamed PE
Shield: CCA Braiding Jacket: PVC
Color: Black, White Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton

20 AWG BC Foam PE 95% BC Braid , RG59 CCTV Coaxial Cable for VDT Display

Quick Detail:

  • RG59/U CCTV Coaxial Cable
  • 20AWG BC Conductor
  • 95% BC Braiding
  • Foamed PE Insulation
  • 75 Ohms CCTV Cable
  • PVC- UL Listed, CM Rated
  • RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM

Description:

KT0700 RG59/U CCTV Coaxial Cable 20AWG BC FPE 95% BC Braiding CM

RG-59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect

for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in

practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

KINGTONE’S price of RG59/U is not high although our quality is really high.

Applications:

Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera

Specifications:

KT0700 RG59/U CCTV Coaxial Cable 20AWG BC FPE 95% BC Braiding CM

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20AWG

Bare Copper

Dielectric

0.144"/3.66±0.05mm

Foamed Polyethylene

First Shield

Nom. 0.161"/4.10mm

Braiding

Strands

0.005"/0.12mm

Bare Copper

% Coverage

95 nom

Jacket

0.236"/6.00±0.1mm

PVC (ETL/UL CM)

Application

For Use in Intermediate CCTV

Run Lengths

Limited Length

Typical run length up to

750 feet

Electrical Characteristics:

Capacitance

52±1 pF/m

17±0.35 pF/ft

Impedance

75±3 Ω

Resistance at 20℃

35.73 Ohms/KM

11.71 Ohms/KFT

Return loss

between 5 and 1000MHz:

> 22dB

Velocity of Propagation

0.85

Shielding Effectiveness(>dB)

70.00

Max Operating Voltage(KVMS)

3.00

Operating Temp Range (PVC)

-20 ℃ to 60℃

RoHS

YES

Attenuation(20℃):

Frequency
(MHZ)

Max Attenuation
(dB/100ft)

Max Attenuation
(dB/100m)

5

0.92

2.82

55

2.21

6.73

211

4.09

12.47

400

5.49

16.73

550

6.40

19.52

750

7.50

22.87

870

8.09

24.67

1000

8.73

26.64

1450

10.60

32.32

1750

11.78

35.92

2150

13.05

39.80

Order Informations:

Marking

KINGTONE KT0700 RG59/U BC 95% BC COAXIAL

CABLE ETL XXXXXXX
RoHS CM 60C XXXFT/M

Package

500FT/PULL BOX, 1000FT/Wooden Spool, Pallet

Delivery time

Normally 20-25 days after received the deposit.

More informations

Please contact with us.

Online Service:

Skype

kingtone3

ICQ 246632889

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
