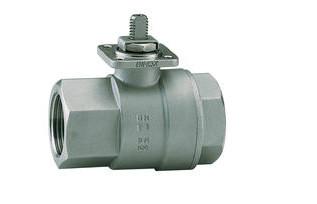

2-way full-bore threaded-ends stainless steel ball valve

GENERAL FEATURES

Suitable for middle pressure applications.

Working temperature: from -20°C to +150°C

Working pressure: see diagram.

Fluid range: air, water, gas, petroleum and petrochemical products, aggressive media.

Surface treatment: article 400 sandblasted; article 401 polished.

Female threaded ends as per UNI/ISO 7/1 Rp specifications.

Head of the valve as per ISO 5211 specifications.

ON REQUEST

Female threaded ends as per NPT B1.20.1 specifications

Seals made of:
-PTFE with glass;
- PTFE with carbon graphite.

For other applications, please contact our technical department.

APPROVALS

According to 97/23 EC “PED”

ATEX version on request in conformity with directive 2014-34-EU, not available for sizes DN10 3/8" e DN15 1/2"

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.

• API-6D
• API-Q1
• API2014
• ISO 9001-2008
• ISO-TS-29001
• CE-PED
• API 607 Fire safe certificate
• API 6FA Fire safe certificate
• China national petroleum corporation approved vendor
• Shanghai high enterprise certificate

Our major products

1. Gate valve series
2. Ball valve series
3. Globe valve series
4. Check valve series
5. Butterfly valve series
6. Other valve series

Exporting is the dominant operation at Kaitai.In the process of KATA brand promotion and building up our distribution channels over the years and now has many satisfied and loyal customers.KATA is well recognized and its products are widely used in the oil and gas industry,power plant,boiler,metallurgy,pressure vessel,water supply and drainage and etc.
