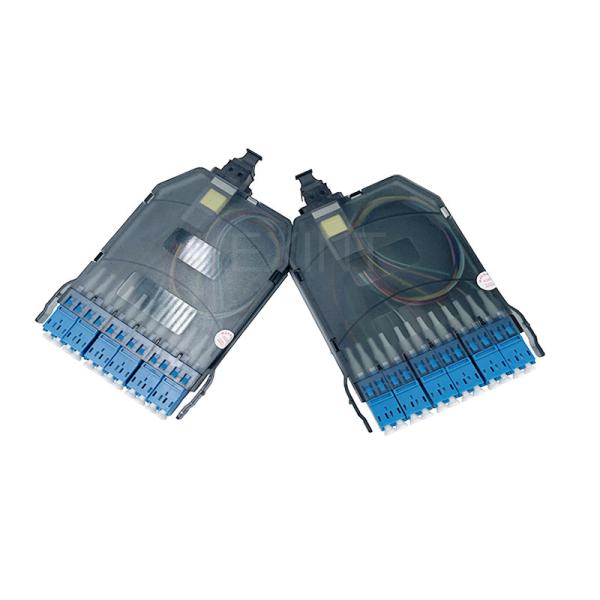

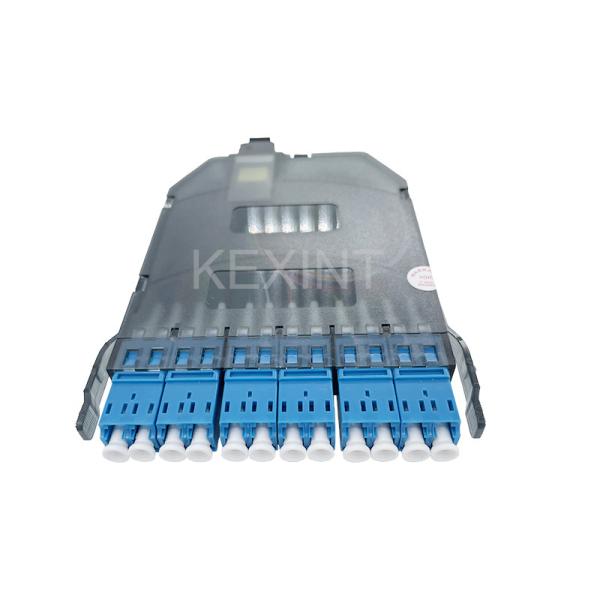

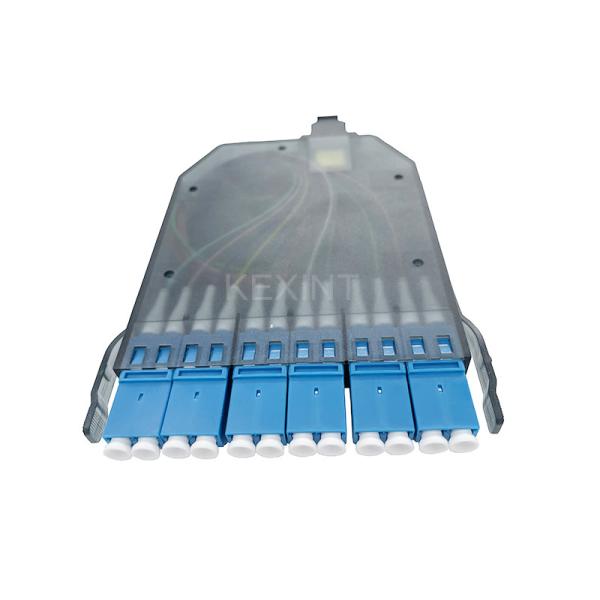

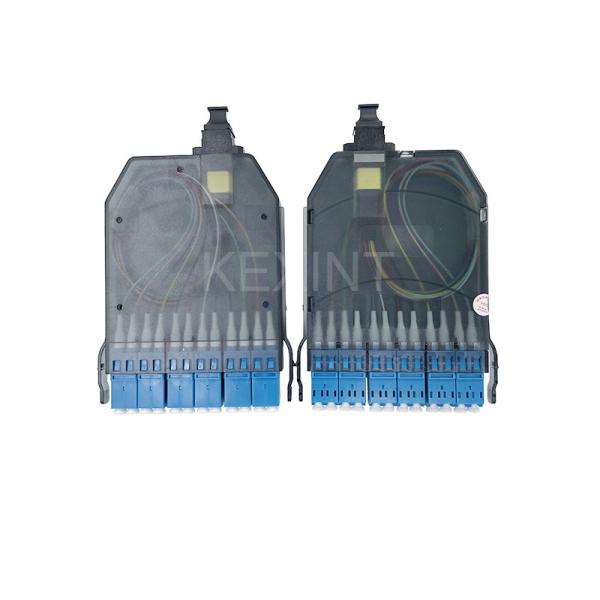

KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
KEXINT Fiber Optic Modular MPO MTP Cassette 12 Fiber LC UPC Single Mode ABS Shell
Specifications
Brand Name :
KEXINT
Model Number :
12 LC-MPO SM
Certification :
CE/ROHS/ISO9001
Place of Origin :
CHINA
MOQ :
5+PCS
Price :
dollars+15.24+pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000+peace+week
Delivery Time :
8 days
Packaging Details :
box
Size :
95*124.5*12mm
Color :
Blue
Material :
ABS
Ports :
12 Ports
Connector Type :
MPO/MTP-LC
Insertion Loss :
≤0.35dB
Return Loss :
≥60dB
Description
The KXT-12LC cassette is specially designed to optimize fiber optic cable management, plug and play, rapid deployment, and increase flexibility and manageability to reduce installation costs. the MPO connection at the rear of the cassette provides a high degree of flexibility, because the transition module can be easily upgraded to MPO conversion or splicing module at a later stage, which allows users to upgrade from 10G data rate (serial optical) to 40G or 100G data rate (Parallel Optics).
MPO&MTP Cassettes are designed for Data Center Solutions supporting the to pologies as specified in the Data Center Standards EN50173-5 and ISO/IEC24764. MPO cassettes connected with MPO Trunk or MPO Patch cables provide the possibility to make cross-connections or inter-connections to end equipment. MPO Cassettes are available in 2 options:MPO–LC(12 fiber),MPO-SC(6 fiber), These cassettes are availablein OS2,OM3& OM4 and polarity options are available instraight and pair flipped wire map.
Feature:
MPO Cassette Designed for matching SP patch panels
Up/down DLC adaptor matched
Compact ultra thin Light weight
ABS shell
Plug and play by single hand
Customizable LOGO
Application:
Data center and infrastructure.
Storage area network.
Fibre Channel.
MPO/MTP
SM Standard
SM Low Loss
MM Standard
MM Low Loss
Insertion Loss
Typical
0.35dB
0.20dB
0.35dB
0.20dB
Max
0.70dB
0.35dB
0.70dB
0.35dB
Return Loss
APC≥50dB
≥25dB
≥35dB
Repeatability
UPC≥40dB
≤0.30 dB (plugging over 500 times) ≤0.30 dB (plugging over 1000 times)
Interchangeability
≤0.30 dB (matching with any connector)
Extension
≤0.30 dB (maximum tension 66 N)
Vibration
≤0.30 dB (10~55 HZ)
Temperature range
-40℃~+75℃
Our advantages:

1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance
