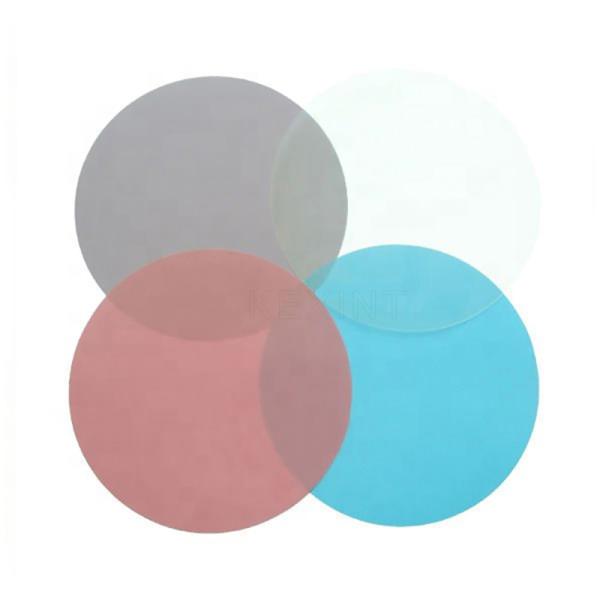

Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Specifications
Brand Name :
KEXINT
Model Number :
1U/3U/6U/9U/30U
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong，China
MOQ :
10 Pieces
Price :
10 - 99 pieces $0.3; 100 - 999 pieces $0.27; >= 1000 pieces $0.24
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Week
Delivery Time :
7 days
Packaging Details :
Inner Plastic Bag+Outer Carton
Size :
127mm (5inch)
Color :
Blue, Green, Yellow, Lvory
Application :
Fiber Optic Patch Cord Making
Material :
Diamond
Article Grade :
9 um
Film Life :
5-10 times
Grinding :
9 Mic
Weight :
0.020 kg
Description

Descriptions:

Polishing films are polishing materials with ultra-precision flexibility. They are made with diamond powders evenly coated on the surface of a flexible substrate by adhesives and are often used for lapping and precision polishing of optical fiber pins, semiconducting materials, metal rollers, etc.
Features:
1. Evenly-sprayed particles on coated surface
2. Good intensity & flexility, suitable for polishing on different facets
3. Suitable for polishing with dry, water or oil medium 4.The fiber polishing film is a durable polishing rate compared to existing polishing films and offers economical operations
Application:
1. Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding
2. Grinding and polishing of optical lens, crystals, LED and LCDs.
3. Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.
Specification
Product Name
Diamond polishing film
Grit
30/9/3/1/0.5/0.05 micron
Size
Φ127mm(5inch), Φ203mm(8inch),etc
Sheet Size
114mm*114mm, 152mm*152mm(6inch*6inch), 8inch*8inch, A4, etc
Thickness
75 micron, 3mil
Back Material
PET, Polyester composite film
Colour
White, Purple, Pink, Yellow, Blue, Green, etc
