Specifications
Brand Name :
KEXINT
Model Number :
KXT-C18
Certification :
CE/ROHS/ISO9001
Place of Origin :
CHINA
MOQ :
10 peaces
Price :
dollars+19.32+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000+piece+week
Delivery Time :
8
Packaging Details :
boxes
Size :
355*256*140 MM
Weight :
2.6kg
Color :
Black
IP rating :
IP 68
Material :
ABS+PC
Connector Type :
Corning Connector
Description

8 Ports Outdoor Fiber Splice Enclosure Corning Ip68 Waterproof Connector For Ftth

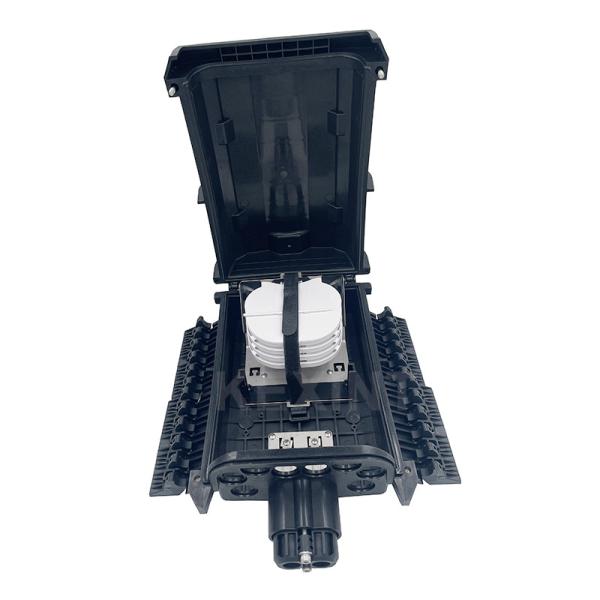

KXT-C18 fiber splitter termination closure is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features:

1. Water-proof design with IP-68 Protection level.
2. Integrated with flap-up splice trays.
3. Impact test:IK10,Pull Force:100N,Full rugged design.
4. All stainless metal plate and anti-rusting bolts,nuts.
5. Fiber bend radius control more than 32mm.
6. 4x 12F splice trays,4 pcs of 1*16 PLC Splitters can be installed as an option.
7. Plug-and-play installation, easy for maintenance and expansion.
8. 180 degree access with 4pcs of buckled lock structure.
9. 16 x reinforced adapters for drop cable with reinforced connectors.
10. 1x mid-span cable entrance for uncut cables (7-18mm).and 2x mechanical glands for distribution cable(7-18mm)
Standard Accessories
Splice trays x 4pcs, wall mounted kits, fiber protective sleeves, cable protection tube, manual.
Optional Accessories
Pole mounted kits, aerial hanging kit.
Our advantages:

1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance
item
value
Model Number
KXT-C18
Type
Fiber Optical Splice Closure
Place of Origin
China
Brand Name
KEXINT
Use
FTTH
Warranty Time
5 YEARS
Network
None
Size
355*256*140 MM
Weight
2.6kg
Color
Black
IP rating
IP 68
Material
ABS+PC
Connector Type
Huawei Connector
Installation

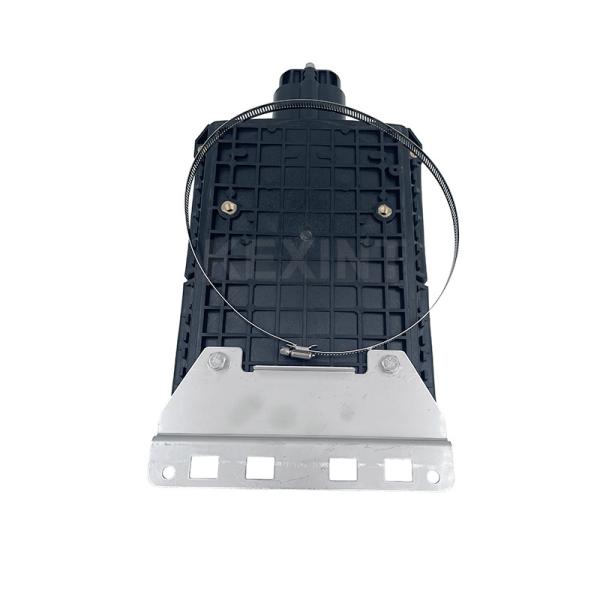

Wall mounting or Pole mounting
Max Capacity
4x 24F splice trays(4pcs of 1x8 PLC splitter)
Certification
CE/ROHS/ISO9001
Temperature
-40~+80℃
