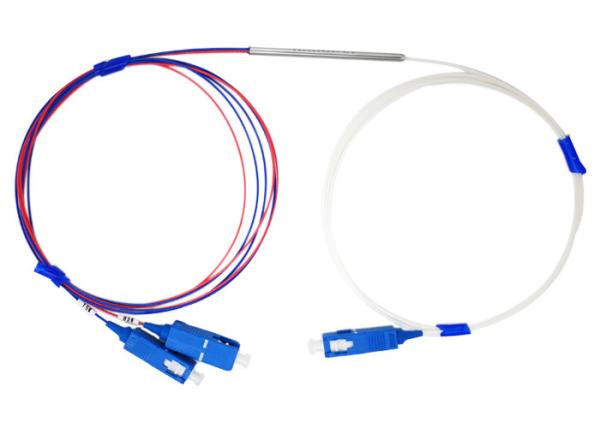

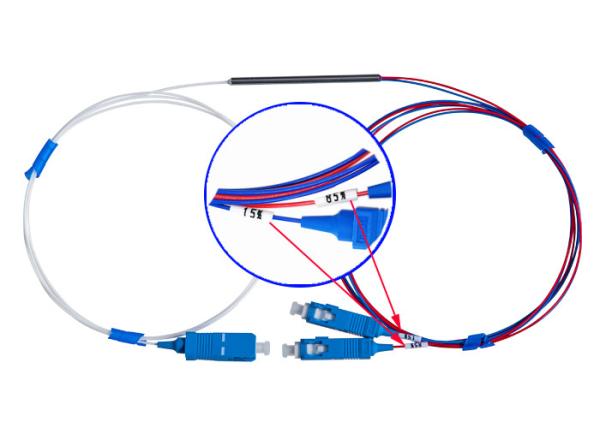

18dB Directivity Coupler Fiber Optical WDM FBT 15/85 1×2 Mini 0.9 SC/UPC Connector
18dB Directivity Coupler Fiber Optical WDM FBT 15/85 1×2 Mini 0.9 SC/UPC Connector
18dB Directivity Coupler Fiber Optical WDM FBT 15/85 1×2 Mini 0.9 SC/UPC Connector
18dB Directivity Coupler Fiber Optical WDM FBT 15/85 1×2 Mini 0.9 SC/UPC Connector
18dB Directivity Coupler Fiber Optical WDM FBT 15/85 1×2 Mini 0.9 SC/UPC Connector
18dB Directivity Coupler Fiber Optical WDM FBT 15/85 1×2 Mini 0.9 SC/UPC Connector
Specifications
Brand Name :
KEXINT
Model Number :
KXT-FBT-1*2-SC/UPC
Certification :
ISO9001-2015
Place of Origin :
SHENZHEN
MOQ :
10
Price :
$+1.49+PCS
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
500+pcs+1day
Delivery Time :
8
Packaging Details :
20*10*2
Parameters :
1*2
Splitter ratio :
15/85
Connector :
SC/UPC CONNECTORS
Wavelength :
1310 /1490/1550
product name :
FBT 1*2 0.9 Mini
Directivity :
18dB
Package :
Steel Tube
Package (exclude boots) :
90*20*10 mm
Description

FBT 1×2 15/85 Coupler Fiber Optical WDM Mini 0.9 SC/UPC Non-uniform Optical Power

Fused tapered optical splitter bundles two or more optical fibers together, then melts and stretches them on a tapered machine, and monitors the change of the splitting ratio in real time. After the splitting ratio reaches the requirements, it ends the melting and stretching. The other fiber is used as the input end, and the other end is used as the multiple output end.

Our company can only pull 1 × 4 or less at a time using the parallel taper process. For 1 × 4 or more devices, multiple 1 × 2 devices are connected together. The whole is packaged in a splitter box.

Applications:

Fiber optic communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)
CATV network
LAN, WAN and MAN
Testing equipments

Features:

Broad Operating Band

High Channel Isolation

Low Insertion Loss

High Reliability and Stability

Specifications:

Dual Window Coupler Test Report
　
S/N: 1507220001
TESTING ENVIRONMENT: Temperature: 23℃±2℃. Relative Humidity:60%±10% 　 　 　 　 　 　
TYPE FBT-1x2-SM-15/85-1310/1490/1550-1m-0.9-NC/NC
Test Wavelength nm 1270~1350&1510~1590
OutPut 　 1310nm 1550nm
Out1 Out2 Out1 Out2
Insertion Loss dB 8.64 0.86 8.59 0.83
Coupling Ratio % 14.30% 85.70% 14.34% 85.66%
PDL dB ≤0.15
Directional dB ≥55
Operating Temperature ℃ -20～+75
Storage Temperature ℃ -40～+85
fiber Length m 1
Dimension mm Ф3.0×54
Fiber Type 　 Corning SMF-28e,9/125,900um
Connector 　 NONE


Our Services:

a. Professional manufacturer, 100% tested for more than 3 times.

b. Customers solutions in days, not weeks.

c. Warmly services with careful attentions.

d. Can provide your specific inquiry within 24 hours.

e. Save much cost, bring more benefits for customer to expand business.

f. We have been 12 years experience in this field. We are the professional supplier that you can trust.
