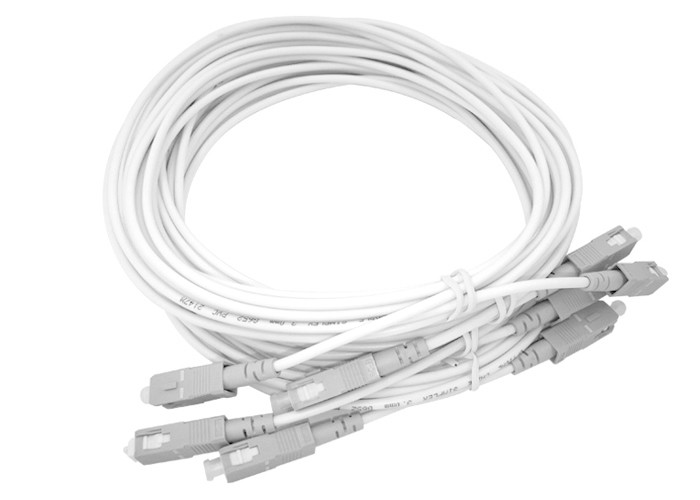

Communication Cabinet SC/APC Fiber Optic Patch Cord SM 3m Optical Cable Transfer Box

Fiber Optic Patch Cord is used in the connection between the optical fiber distribution frame and the equipment (OLT) optical module in the computer room, the optical fiber distribution frame wiring, the optical path link of the optical cable transfer box in the city center FTTH wiring, the user's optical fiber distribution box, and the ONU end connection.
It are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

Application :

1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems

Features:

Low insertion loss and back reflection loss

Good echangeabilityGood Durability

High temperature stability

CE,ROHS,FCC

Characteristics:

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2) Ferrule End-face: PC, UPCAPC

3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...

5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

Specifications:

Our company promises:

1. The quality of our products meets European environmental standards and 100% passes 3D testing.
2. Our customers are all over the world. The main customers are France ORANGE, Russia Telecom, MTC, VIPCOM, Kenya Safaricom, Brazil TIM, etc ...
3. We can OEM.
4. We produce optical products and network cables, which can provide and solve any product problems in the FTTX system.
