CAT5 SFTP Network Electric Copper Lan Cable Rj45 100M Transmission 23AWG 305m

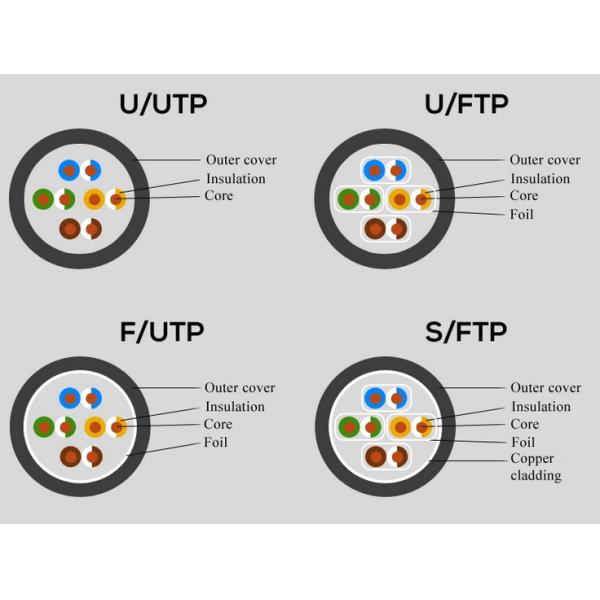

Double shielded twisted pair (SFTP), adding a layer of braided mesh on the basis of aluminum foil. Commonly used is aluminum-magnesium wire braided mesh, also tin wire or tinned copper wire, with anti-interference and highly confidential transmission, suitable for professional wiring In progress.

Material Instruction

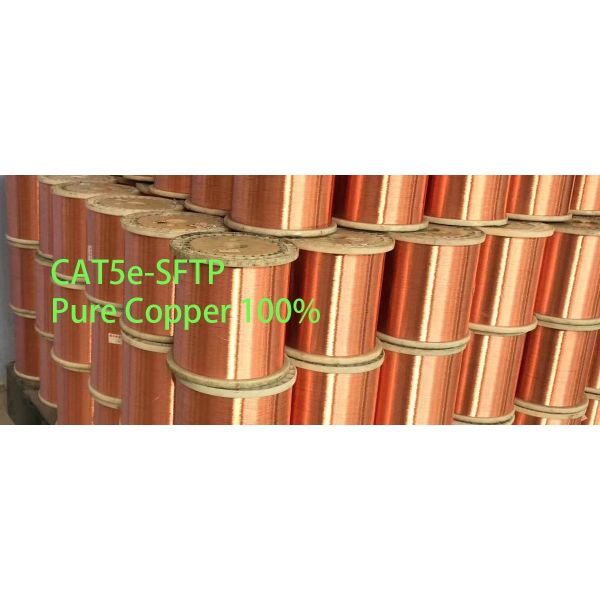

a. 23AWG Soft Plain Copper
b. Eco-friendly,pollution-free and new materials selected.Promise new material only.
c. Insulation: Solid HDPE.
d. Eco-friendly PE Jacket , high-temperature resistance,long working life.

Basic information

Physical Electrical Characteristics

1. Using standard twisted construction design, small crosstalk of signal transmission 2.Upload and download in high speed transfer.
3. Bandwidth is standard 250 MHz.
4. Support 10-Gigabit Ethernet netword transmission requirements.

5. DC resistance (max): 4.8Ω/100m at 20°C;
6. Mutual capactitance (max): 5.6nF/100m;
7. Unbalanced capacitance (max): 330pF/100m;
8. Dielectric strength between conductors (min): 2.5kV/2s;
9. Impedance: 1-250MHz 100±15Ω;
10. Differential phase delay (max): 45ns/100m;
11. Operating temperature: -20~+60°C;
12. Permitted bend radius: 10 times diameter of the cable.

Application:
Ethernet,

10 Base-T,

100 Base-T4,

ATM,

TP-PMD Seppch,

Telephone,

Multimedia,

Trunk Wiring

Cable Construction:
Conductor Dimension: 0.505mm

Core Dimension: 0.91mm 0.92mm
No. Of Pairs: 4
OD: 6.3mm

Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,UL444
Certificates ISO9001,14000, ROHS.

Cable Specification

Products:
1) Bare Copper Conductor, Bare Aluminum Conductor;
2) 450/750V and below, PVC Insulation, Power Cables and Electrical Wires;
3) 0.6/1kV, PVC Insulation, Power Cables and Electrical Wires;
4) 0.6/1kV XLPE Insulation, Power Cables;
5) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 26/35kV, Medium Voltage power cables;
6) Control Cables, Instrument Cables, Safety/Security Cables, Alarm Cables;
7) Flexible Cable, Soft Cable, Welding Cables, Battery Connect Cables, Machine Connect Cables;
8) 1kV or 10kV, Aerial Bunch/Bundled Cables;
9) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH Cables, Solar Cables,
RoHS Cables, Environmental Protection Cables, Irradiation Cross-linked Cables;
10) Communication Cables:
a. Network Cables: Cat 5, Cat 5e, Cat 6 Cables;
b. Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs, 10 Pairs and 20 Pairs Cables;
c. Coaxial Cables: SYV75-5, SYWV75-5, RG6, RG11, RG59 Cables.

Our products Categories Provided:

A.Optical Fiber Cable and Patch Cord
B.Lan and Network Cable and Patch Cord
C.Alarm Cable and Speaker Cable
D.Drop Wire and Telephone Cable
E.Communication Cable
F.Coaxial Cable
G.Electrical Wire and Power Cable
H.Telecom Accessory.

OEM / Related Production For Lan Cable

OEM custom-made production according to different customer's request. Shape, PVC ,color, Conductor diameter, degree of tightness, logo design, Inner and Outer package design, all of below request are available.

We can customize the length according to customer requirements, OEM custom packaging.
