Specifications
Brand Name :
KEXINT
Model Number :
GCYFXTY
Certification :
CE Iso-9001 Ross UL
Place of Origin :
CHINA
MOQ :
10+KM
Price :
124.36+$+km
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :
100+km+Day
Delivery Time :
8
Packaging Details :
box
Fiber Type :
G652D/G657A1/G657A2
Fiber count :
2-24 Cores
Loose tube material :
PBT
Strength member :
Aramid yarn
Outer sheath material :
HDPE
Diameter :
1.8-2.8mm
Cable Weight :
2.6-7KG/KM
MAX. Tensile Strength :
60N
Operating temperature :
-40℃~85℃
Description

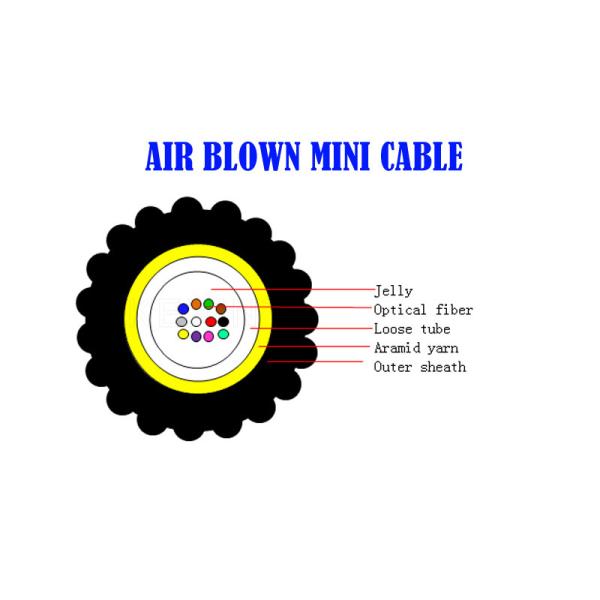

KEXINT GCYFXTY Mini Central Tube Type Air-blown Fiber Optical Cable For Pipes

Mini central tube type air-blown optical cable is to place colored 2-24 core optical fibers in the bundle tube, and extrude a layer of high-density polyethylene outer sheath.
Features:
●Special composite material loose tube, reducing the retraction of low temperature tube;
●Precisely control the excess length of the optical fiber, and the performance of the optical cable is stable;
●Unique process control to prevent sheath wrinkling during air blowing;
●Outer sheath of high-density polyethylene to increase the air blowing distance.
Product Standards:
IEC 60794-5,IEC 60794-1-2 or YD/T 1460-2006
Optical Properties:
G.652
G.655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.36dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth(ClassA)
@850
≥500MHZ·km
≥200MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical aperture
0.200±0.015NA
0.275±0.015NA
Optical cable cut-off wavelength
≤1260nm
≤1480nm
Technical Parameter:
Micro cable model
GCYFXY－xxF(MTE +outer diameter)
MTE1.8
MTE2.0
MTE2.3
MTE2.5
MTE2.8
Fiber count
2～4
2～4
6～12
2～12
14～24
HDPE Outer Sheath Thickness
Nominal:0.20mm,Least 0.15mm
Nominal outer diameter
1.8mm
2.0mm
2.3mm
2.5mm
2.8mm
Approximate weight
2.6 kg/km
4.0 kg/km
5.0 kg/km
6.0 kg/km
7.0kg/km
Cable Attenuation (Single Mode Fiber)
1310nm/1550nm≤0.35/0.22dB/km
Maximum pull
40N
40N
50N
60N
60N
Maximum crushing force
600N/100mm
Allowable minimum bending radius
10 times/20 times the outer diameter of the optical cable
Applicable temperature range
Storage -30～＋60℃; Installation -10～＋40℃; Operation -20～＋50℃
Cable life (estimated)
25 years
Air-blowing Performance:
Test Equipment
Pipeline models suitable for air delivery and corresponding typical air delivery lengths
Polyment: PRM-196 , PR140 etc. Air pressure: 13bar
Fiber count
Microtubule model
3.5/5.0mm
Microtubule model
5.5/7.0mm
2～12 cores
800m
1500m
14～24 cores
500m
1500m
Mechanical Behavior:
Item
Test reference standard
Test Results
Remark
Stretch
IEC 60794-1-2-E1
(GB/T 7424.2-E1)
Fiber strain(%)
Attachment attenuation(dB)
The short-term test pull is the maximum pull, The long-term test pull is 1/3 of the maximum pull
Short term ≤0.3 Long-term ≤0.1
Short term: ≤0.1, No obvious strain after stress removal; Long term: none apparent
Flattening force
IEC 60794-1-2-E3
(GB/T 7424.2-E3)
Short-term crushing force: additional attenuation ≤0.05; Long-term crushing force: no obvious; After the stress is removed, the
optical fiber has no obvious residual additional attenuation, No visible cracks on sheath surface
Short-term test pressure: 600N
Long-term test pressure: 200N
Bending repeatedly test
IEC 60794-1-2-E6
(GB/T 7424.2-E6)
After the test: the optical fiber has no obvious residual attachment attenuation; No visible cracks in sheath
Bending radius = 20 times the microcable diameter
load=15N
Number of bends:25
Torsion test

IEC 60794-1-2-E7
(GB/T 7424.2-E7)
After the test: the fiber does not break and the sheath has no visible cracks, After stress relief, there is no obvious residual
additional attenuation
Twist angle:±180º
load=15N
Number of twists:5
Winding test
IEC 60794-1-2-E11A
(GB/T 7424.2-E11A)
After the test: the fiber does not break and the sheath has no visible cracks
Mandrel diameter = 20 times microcable diameter
Number of close turns=10
Cycles=5
All the above results are tested at 1550nm wavelength
Environmental performance:
Item
Testing Method
The indicators that the test should achieve
Temperature Performance
IEC 60794-1-2-F1
Fiber additional attenuation(1550nm)
≤0.1 dB/km
Water Permeability
IEC 60794-1-2-F5B
1m water height, 3m cable, test time 24 hours No water leakage from the other end of the micro-cable
Trickle Performance
IEC 60794-1-2-E14
The microcable is maintained at an ambient temperature of 70°C for 24 hours Microcable No Fill Compound Drip Out
