KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor
Specifications
Brand Name :
KEXINT
Model Number :
GYTA
Place of Origin :
Guangdong，China
MOQ :
10 kilometers
Price :
10 - 99 kilometers $511.12 ; 100 - 999 kilometers $498.36 ; >= 1000 kilometers $474.27
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Week
Delivery Time :
7 days

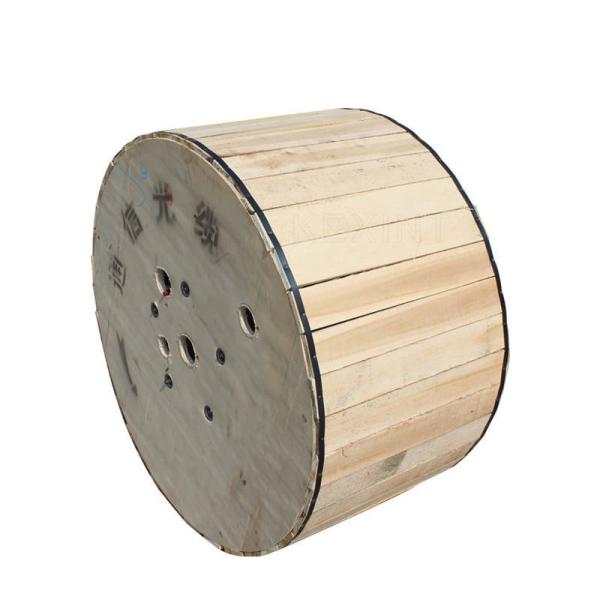

Packaging Details :
Inner Carton+Outer Carton
Type :
Outdoor fiber optical cable
Jacket Material :
PE PVC LSZH HDPE
Fiber Count :
2-96 cores
Color :
Black
Fiber type :
G657A/G652D
strength member :
Steel wire/FRP
Temperature :
-40℃ -- +70℃
Description

KEXINT GYTA Armoured Fibre Optic Cable FTTH 4 - 96 Core Outdoor

KEXINT GYTA Armoured Fiber Optical Cable Ftth 4 6 8 12 24 48 72 96 Core Outdoor

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Characteristics:

· Good mechanical and temperature performance

· High strength loose tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Crush resistance and flexibility

· PE/LSZH sheath protects cable from ultraviolet radiation

· 100% cable core filling · Double jacket single armored

· (GYTA) for rodent pr.otection

Technical Specifications :
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush
Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 13.2 162 6 5 3000 1000 3000 1000
32~48 13.8 175 8 6 3000 1000 3000 1000
50~72 14.6 205 12 6 3000 1000 3000 1000
74~96 16.0 230 12 8 3000 1000 3000 1000
98~144 17.6 285 12 12 3000 1000 3000 1000
＞144 Available upon customer’s request

Note:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material

2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
3. Special cable structure can be designed and manufactured on customer’s request.
