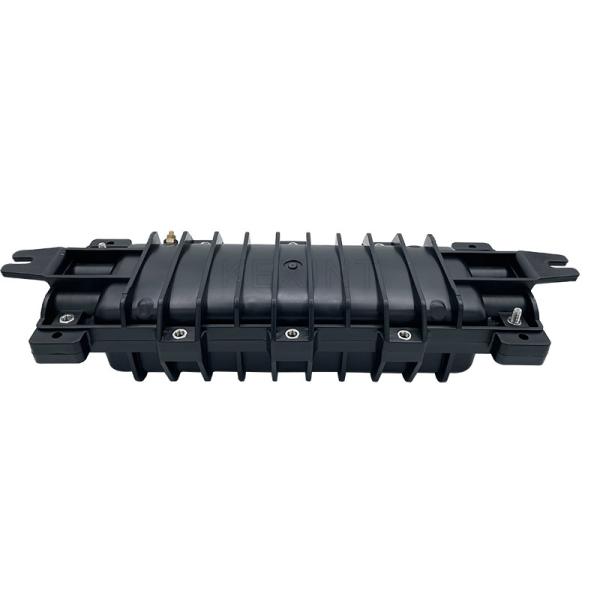

KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
KEXINT FTTH Outdoor Horizontal Fiber Optic Cable Splice Closure 2 In 2 Out IP68 Waterproof
Specifications
Brand Name :
KEXINT
Model Number :
KXT-W14
Certification :
CE Iso-9001 Ross UL
Place of Origin :
Guangdong
MOQ :
10+pcs
Price :
21.54+$+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :
1000+pcs+1day
Delivery Time :
8
Packaging Details :
box
Material :
Strengthen Polymer Plastic
Capacity :
12-144 core
Protection Level :
IP68
Inlets/Outlets :
2/2
Diameter Of Fiber Cable(mm) :
10-25
Size :
580*185*125mm
Installation :
Pole/Aerial/Manhole
Description
Fiber optic splice closures are made of excellent engineering plastics. Optical Fiber Splice Closure is applied in the junction and protecting of the fiber. It can be suitable for protecting optical fiber splices in straight through and branching
applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Features:
1. The box add aging-resistant in imported high tensile construction plastic out-faster is made up of stainless steel.
2. Overlap structure in splicing tray easy to install
3. Suitable for ordinary fiber and ribbon fiber
4. Perfect leak prooflessness and fine function
5. Perfect and reliable sealing operations
6. Fiber-bending radium guaranteed more than 40mm
7. Full accessories for convenient operations
8. Fiber optic splice closure can be used repeatedly
9. High reliability
10.For aerial, and direct buried applications
Specifications:
1. Temperature: -40 to +80 degrees Celsius
2. Atmosphere: 70 to 106kpa
3. Sealing property at normal temperature: Internal pressure: 70 KPa, without decrease in 72 hours
4. High temperature sealing property: internal pressure: 70KPa, without decrease in 168 hours at 60 degree
5. Intensity:15KV (DC) not being broken down, has no flying arc.
6. Add ional Loss: No additional loss when optic fibers are winded in the splice trays
7. The-ageing time of the material of the enclosure is beyond 20 years
Application: CATV system Optical fiber communication FTTX Fiber optic network convergence Optical fiber access network
Specification:
Outside dimension (Height x Diameter)
580*185*125mm
Weight (excluding outside box)
3.5kg
Number of inlet/outlet ports
4 round ports
Diameter of fiber cable
Φ8mm~Φ16 mm
Capacity of FOSC
Bunchy: 12-144 (cores)
Our advantages:

1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance
