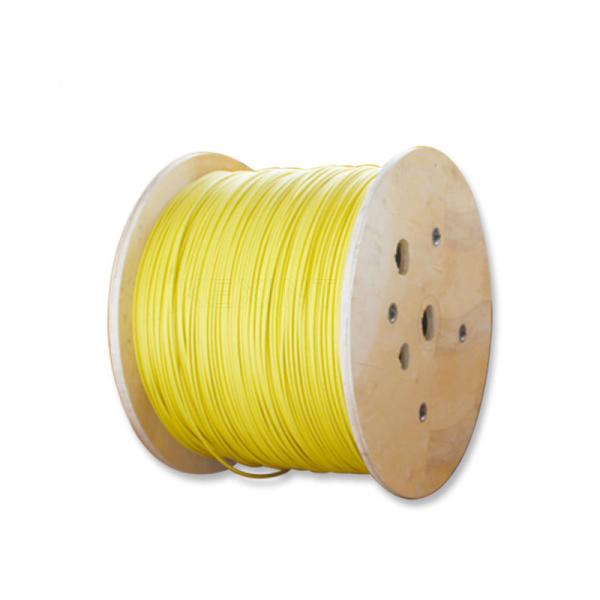

KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
KEXINT GJFJBH Indoor Flat Fiber Cable Duplex Aramid Yarn Strengthened Interconnect
Specifications
Brand Name :
KEXINT
Model Number :
GJFJBH
Certification :
CE/ROHS/ISO9001
Place of Origin :
CHINA
MOQ :
1+KM
Price :
0.04+$+m
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :
1000+km+Day
Delivery Time :
10
Packaging Details :
roll
Color :
Yellow or customized
Jacket Material :
LZSH or customized
Length :
Customized
Application :
Indoor
Fiber Type :
G657A1 or customized
Strength Member Material :
Aramid Yarn
Fiber Core :
2 cores
Storage temperature :
-60~+80℃
Description

KEXINT Duplex Aramid Yarn Strengthened Interconnect Flat Indoor Fiber Cable GJFJBH

The structure of GJFJBV/H double-core optical cable is based on ф900μm or ф600μm tight-buffered optical fiber as the basic unit. Outside the tight-buffered optical fiber unit, multi-strand aramid yarn or high-strength glass yarn is evenly spread to strengthen, and then extruded polyvinyl chloride (PVC) Or low-smoke halogen-free flame-retardant polyolefin (LSZH) outer sheath. GJFJBV/H is used for the connection of communication equipment, 0.9 tight package and easy to peel, aramid yarn as a reinforcing element, which makes the optical cable have excellent tensile strength, and the non-metallic all-dielectric structure protects it from electromagnetic influence.
Features:
· High-strength aramid yarn enhances the tensile strength of optical cables
·The outer diameter of the tight-buffered fiber is uniform and the stripping property is good Stable performance at high and low temperatures
·The outer protection material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant, environmental protection, etc
. 8-shaped structure sheath is easy to peel off the branch for use
Application:
·data communication
·Optical linker production
·Laying method: indoor shaft, horizontal wiring
· Duplex fiber optic active connection patch cord or pigtail
Technical Parameters:
Tensile Strength
Long term
120N
120N
80N
60N
Short term
250N
250N
150N
120N
Crush Resistance
Long term
100N/100mm
100N/100mm
100N/100mm
100N/100mm
Short term
500N/100mm
500N/100mm
500N/100mm
500N/100mm
Bending Radius
Dynamic
20XD
20XD
20XD
20XD
Static
10XD
10XD
10XD
10XD
Optical Characteristics:
G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
--
@1550nm
≤0.22dB/km
≤0.23dB/km
Wavelength
(Class A)
@850
≥500MHZ·km
≥500MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260nm
≤1480nm
Product Standards:
GJFJBV/H optical cable complies with YD/T1258.2-2009, ICEA-596, GR-409, IEC794, etc.; and meets UL certification requirements for OFNR and OFNP.
