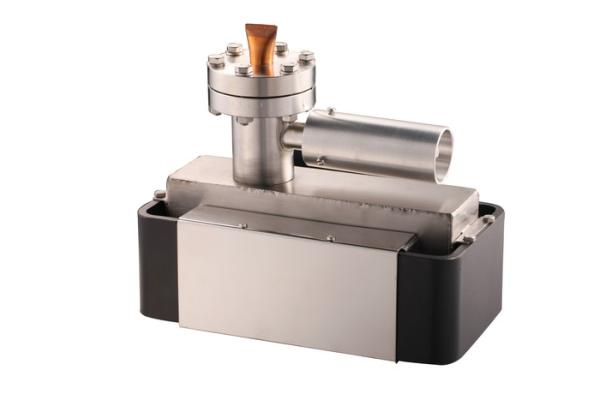

Ultra High Vacuum Sputter Ion Pump Oil Less 7×10-8 Pa Ultimate Pressure
Ultra High Vacuum Sputter Ion Pump Oil Less 7×10-8 Pa Ultimate Pressure
Specifications
Brand Name :
KYKY
Model Number :
2L-25
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
4weeks
Packaging Details :
Wooden box for overseas shipment
Flange :
CF35
Pumping speed :
22L/s Air , 0.3L/s Ar
ultimate pressure :
7×10-8 Pa
Voltage :
+7KV
Description

Ion Pump , 2L-25 , DN35CF , 22L/s Air , 0.3L/s Ar , +7KV , 7E-8Pa

Sputter-ion pump is vacuum generation equipment for obtaining clean and ultra-high vacuum.

The sputter-ion pump is main pump of oil less ultra-high vacuum set.

The ion pump works in a closed system which doesn't require continuous working backing pump.

Principle:

Material of anode is stainless steel barrel, and material of cathode istitanium plate. Penning discharge process ionizes gas under the joint action of magnetic field and electric field, thus realizing exhausting of gas.

Advantages:

This series of pump has advantages such as cleanness, high vacuum degree, zero noise, zero vibration and convenience in operation.

Applications:

Main applications are the scientific experiment apparatuses in the fields of high-energy particle accelerator, controlled thermonuclear reaction apparatus, electric vacuum device, semiconductor material, electronic microscope and mass spectrometer, and other industrial equipment requiring ultra-high vacuum.

Specifications:

Model 2L-25
Flange DN35CF
Pumping speed(L/S) ( air) 22
Pumping speed (Ar) 0.3
Start-up pressure (Pa) ≤5×10-4
ultimate pressure (Pa) 7×10-8
(℃)baking temperature 　 ＜200
With magnetic
Without magnetic ＜300
working voltage(KV) 7
electrode unit 1
L*W*H (mm) 222×121×161
(kg) weight 8
